VIRE 12 HELP

Old Marine Engine » Miscellaneous » VIRE 12 HELP « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Marum
Posted on Sunday, January 19, 2003 - 04:30 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have vire 12 ( 10years old with about 200 hours total running ) installed in my river launch on the Thames, however, for the past two years during a short trip the engine back fired and stopped, it restarted and continued to run unill I returned home, the nextday when started it will do little more than tick over, operning the throtle causes the engine to stall, using the choke or partically covering the air intake and it will rev to full revs, on switching of the choke the engine continues to run for about 30seconds and stalls. to this
1. I have removed, fully dismantled and cleaned the carb and checked all the gallerys for blockages & check the float chamber level and all appears to be clear, and refitted with new manifold and float chamber gaskets.
2. As a matter of course I have also rebuilt the fuel pump with a new parts and once again all appears fine with a sufficient fuel delivery.
3. The cylinder has been checked and honed and the rings are unbroken.
4. The fuel has been replaced with fresh.
5. The spark plug, points and condenser replaced, and a fine spark obtained.
6. The exhaust checked for blockages and the silencer remove from the engine and cleaned.

One thing I have noticed is that no petrol issues from the main jet when the throtle is opened gradually to fully open, however, partically covering the air intake and petrol can been seen to flow.

Other than stripping the engine to check the crankcase oil seals I am at a loss what to do next, can you help? with any advice please. Thankyou
Top of pagePrevious messageNext messageBottom of page Link to this message

rholcomb
Posted on Sunday, January 19, 2003 - 05:16 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I did some reseach on the web and found this site devoted exclusivly to the Vire 7 and 12

http://gofree.indigo.ie/~vire7
Top of pagePrevious messageNext messageBottom of page Link to this message

peter ogborne
Posted on Sunday, January 19, 2003 - 07:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am sure you have a site that will greatly appreciated by many owners of these engines ,well done .
Top of pagePrevious messageNext messageBottom of page Link to this message

Robin Fryer
Visitor
Posted on Saturday, July 23, 2005 - 07:58 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi, I sympathise with this! I have a Vire 7 in my Yot, Japhet, a Trident 24. This has a horrid Tillotson diaphragm carb and HAD a diaphragm (built into carb) petrol pump. I solved a lot of problems by eliminatimg this and fitting a Lucas / SU electric pump.

ISTR that the Vire 12 has a seperate diaphragm pump (actuated by the crank case pressure fluctuations. You could try replacing the diaphragms as they can eitherharden up, split or puncture. You could also chuck the wretched thing away and go the way I went, or install a gravity tank.

By the way, I think that in context, the Vire is a nice engine, being light and quiet, but ruined by it's horrid carb in the case of the 7, and the standard fuel pump.

Not a problem for you on fresh water, but the raw water (direct) cooling and dissimilar metals used all over the place have piqued my interest in further mods.

(Already, I've installed an alternator, but this project is part of further improvements)

Cheers,

Robin
Top of pagePrevious messageNext messageBottom of page Link to this message

Hajukas
Visitor
Posted on Wednesday, January 18, 2006 - 11:28 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a Vire 12 aas well and there's nothing to find but gofree, but that's all For the 12 it'sa a problem. Especially cause the carb is really different.

So anybody with advice please!!!

hajukas@hotmail.com

Cheers, Hajé
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Moderator
Username: andrew

Post Number: 1335
Registered: 11-2001


Posted on Wednesday, January 18, 2006 - 08:07 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hajukas,

Have you tried contacting Fairways Engineering in the UK? They might be able to help with parts or literature, see:

http://www.fairwaysmarine.com/vire/vire12.asp
Top of pagePrevious messageNext messageBottom of page Link to this message

gmarc
New member
Username: gmarc

Post Number: 1
Registered: 09-2006
Posted on Wednesday, September 27, 2006 - 12:38 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Andrew, Fairwaysmarine seems to be the reference to go for essential info, although they are quite remote...THe Gofree links doesn't work anymore.

So back to basic, if someone knows how to find manuals for the Vire 12, it would be appreciated.
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Moderator
Username: andrew

Post Number: 722
Registered: 11-2001


Posted on Wednesday, September 27, 2006 - 09:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The vire link above does work for me...

http://gofree.indigo.ie/~vire7/
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Rudd-Orthner
Visitor
Posted on Thursday, January 24, 2008 - 05:05 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ask the "Nick the Engineer" on eBay. He has a eBay shop and is the UK distributer for VIRE parts 6,7 and 12. He also does do call outs and he got mine working quite quickly. He can be found on www.VireEngines.com

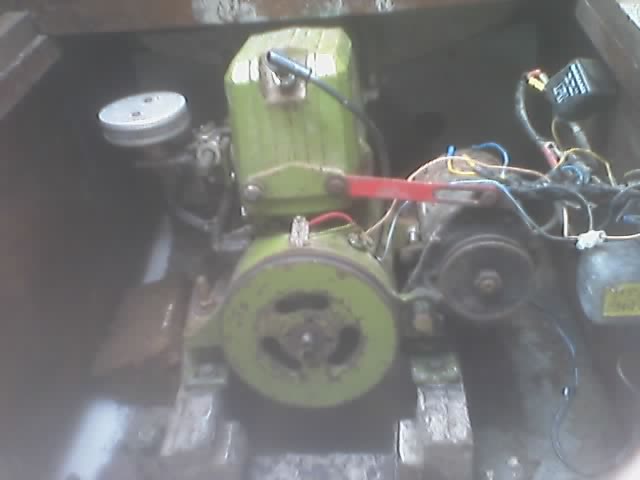

Before Nick
Before Nick

After Nick;s efforts
After Nick
Top of pagePrevious messageNext messageBottom of page Link to this message

VIRE
Visitor
Posted on Thursday, September 04, 2008 - 07:44 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The old VIRE engine Factory Address is:
Masnedø Marinecenter A/S
Masnedøvej 4
DK - 4760 Vordingborg
Denmark

Tel: +45 55354010
email: lr@mmc.dk
website: http//mmc.dk
Top of pagePrevious messageNext messageBottom of page Link to this message

vireuk
New member
Username: vireuk

Post Number: 3
Registered: 05-2008
Posted on Tuesday, September 09, 2008 - 05:51 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi All,
If you want professional advice, not amateur rumours, you should contact the OFFICIAL dealer through the Vire website, both officialy endorsed by the manufacturers www.VireEngines.com
also, FYI as a matter of record, Fairways ceased to be an official dealer since about 2000, when it was in the hands of the late Dave Pickup did little except needlessly and incompetently rebuild engines without ever buying parts from the manufacturers;ceased submitting accounts to companies house since 2005, Mr.Pickup died Summer 07, and the landlords liquidated Fairways in April who had left chaos and huge unpaid bills. The phone has been dead since.

In fact, since 2006, Fairways have been requesting other engineers to rebuild Vires, who have referred any enquiries for Vires to Vire UK anyway, who have been the only official dealer since 2004, and that is because we have provided the rebuild website, support the manufacturer, give free technical advice worldwide, and basically the only long term supporter of Vires.
Masnedo, who bought the manufacturing licence and spares from Valmet when castings ceased decades ago, are really a huge marine chandler and general boatyard, they refer technical enquiries to Vire UK and VireEngines.com. Other sites are not reccomended because they list many wrong part numbers and unofficial repairers which have caused misery to many owners who have then given up.
Contrary to popular opinion, there are three areas in the Vire that unless rebuilt by an expert will lead to water in the gearbox/unreliable operation/seizure; these are the water pump shaft and seals/ carburettor / instalation of anti-siphon exhaust equipment. Simply replacing rubber seals and gaskets onto corroded components is not going to work or last.

Unlike alternatives which are often lower specification, All our parts are original and guaranteed to not only fit and last, but the cause of the failure and remedy will be tackled. Vire UK ONLY work on Vire engines, we are a specialist cottage industry, not a general marine engineers, although i do have a degree in Maritime Engineering, which seems to be a rarity nowadays, plus 20 years wide engineering to draw from. Vire engines should be repiared by an expert with spare engines and all new original service parts on the shelf, not some engineers who can hardly remeber the last petrol inboard they had, and may delegate it to a trainee.

there is ample spares online now through the main dealer

free technical helpline is 0(44)1202 470184
ebay shop has all the service spares plus rebuilt warranted engines usually.

please support the only remaining Vire specialist, it's down to Vire owners to choose to bodge engines and kill off expert advice and support, or do it properly and keep the brand and support alive for more years.

thanks for your support

Nick
Top of pagePrevious messageNext messageBottom of page Link to this message

todd_vidgen
Senior Member
Username: todd_vidgen

Post Number: 80
Registered: 03-2008
Posted on Saturday, September 13, 2008 - 06:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Gee, I'm glad you got that off your chest
Top of pagePrevious messageNext messageBottom of page Link to this message

RCM
Visitor
Posted on Tuesday, September 30, 2008 - 10:21 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

VIRE 12 Refurbished by Rock Channel Marine, (Rye, East Sussex, UK).

Golden Engine
Top of pagePrevious messageNext messageBottom of page Link to this message

edruddri
Visitor
Posted on Wednesday, October 22, 2008 - 07:23 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Quite quiet engines, compared to my outboard or other peoples diesel engines, which is nice I can hear my NAV aids and depth sounder alarms and the radio more clearly. I believe it’s quite economical as well. It does of course have the advantage of being inside a compartment as well which makes it ever quieter again.
Top of pagePrevious messageNext messageBottom of page Link to this message

skipperpierrot
New member
Username: skipperpierrot

Post Number: 1
Registered: 03-2009
Posted on Wednesday, March 04, 2009 - 02:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

cerco urgente pistone maggiorato per Vire 12
piston compl.0,5 mm ov. size Vire 12 part number 52206
Top of pagePrevious messageNext messageBottom of page Link to this message

John M
Visitor
Posted on Tuesday, June 02, 2009 - 10:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Does anyone have an idea what a Vires 7 would be worth for parts? I have one, the fly wheel turns by hand, shaft turns easily, but the engine has not been started for years
Top of pagePrevious messageNext messageBottom of page Link to this message

narrau
Member
Username: narrau

Post Number: 12
Registered: 02-2008
Posted on Wednesday, June 03, 2009 - 12:02 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi , I am looking for Vire parts for my vire BVK 6hp I need an exhaust silencer and a complete clutchcone to restore a second hand Vire. I bought a Vire 6hp a while ago which was 30 years old but never used for $500 if that info helps u any. If u canoot sell yours maybe u will sell parts?
Top of pagePrevious messageNext messageBottom of page Link to this message

vireuk
Member
Username: vireuk

Post Number: 4
Registered: 05-2008
Posted on Wednesday, June 03, 2009 - 04:55 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I will pay £100 for any Vire engine complete, I need the spares. I have several collected and its the basis of a used spares business, the only one in the world, as well as all new parts too. Prices arent cheap but they ARE available contact me via VireEngines.com, including lots of older parts now discontinued and not available new like Vire 6 exhausts, cylinders and gears. Most importantly, spares are of little use without guidance of the pitfalls and long term solution, so you not only fix your engine but remedy the origin for decades more or reliable operation. Dont bodge it, dont just replace it, fix it properly! worldwide shipping Fedex and paypal instant payment makes it easy
Top of pagePrevious messageNext messageBottom of page Link to this message

gmarc
New member
Username: gmarc

Post Number: 2
Registered: 09-2006
Posted on Wednesday, June 03, 2009 - 10:00 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Nick, I went to see your site and online shop. Good work. Do you intend to develop the vire 12 portion? Can you give me an idea on tuning up/ overhauling a vire 12?
Top of pagePrevious messageNext messageBottom of page Link to this message

vireuk
Member
Username: vireuk

Post Number: 5
Registered: 05-2008
Posted on Thursday, June 04, 2009 - 06:26 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The VireEngines.com site is an evolved cross between the original Vire6.info site (2002 which was a haynes style online manual) and now added Vire 7 site, but as you say, the Vire 12 is different. I havent yet decided if i should split the site into the 3 engines, because most of the parts are common but i think i can do it without replicating most information. look out around the Winter when i have a lot more time. There's also a commercial aspect to consider, and also the history, which i need to complete then.
In particular many jobs like tuning and fault-finding procedures have been given inadequate attention in the engine printed manuals, and i want to get a balance of giving this information at little cost where it will preserve an engine's life, and yet in many circumstances if you tell owners 'a little bit of information can be dangerous' is true, e.g. replacing pump seals is an expert job to make them last decades. I have considered splitting the site into seperate levels where general info is free, fault finding and spare part identification/inspection etc, and then if people want to have my expertise in detail online/they can donate via paypal to receive access to more info online. Trouble is, then, everything could get copied, and possibly republished, without control and so unfortunately, due to hackers, for the forseeable future i cant see myself putting all my knowledge and tips of sorting out over 100 Vire engine in the last 5 years online.

In answer to your question, the Vire 12 is the same as a Vire 7 except notably ; bing carb and pump, higher compression head, water trap built into quieter exhaust, different final drive ratio, different water pump housing, a few other things to do with the auxilliaries. The carb tuning is preset, you can only alter the throttle rest screw and the idle mixture screw(set slightly rich from its mid-point between the rich and lean misfire beginnings). There are no new Vire12 carbs now, but i can service them for you. It may be possible in future to have a new carb but i am still finalising the solution with suppliers(yet another new source of tested parts im opening up each month to keep the brand alive costing several hours a year each item). I have several engines in stock including rebuilt Vire12 and Vire6 plus all the Vire7 engines from every phase. Yesterday i was called out to 2 different boats, one dead; now running lovely after new Vire7 carb fitted, -the other also dead and pull starting only, ; now running perfect with refurbished carb, new points and refurbished dynastart/regularor/electrics added professionally in one 2 hour job! both owners had years of trouble and stress from previous bodging, now a thing of the past, very satisfying for me too!


please support your only remaining expert Dealer! 0(44 intl) 1202 470184
Top of pagePrevious messageNext messageBottom of page Link to this message

vireuk
Member
Username: vireuk

Post Number: 6
Registered: 05-2008
Posted on Thursday, June 04, 2009 - 07:10 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

copyright 2009 VIRE UK

Beulieu Boat jumble, we exhibit each year - great fun and effective way to raise awareness of 'Vire' - on display 13th May 2009;

RHS=Vire 12 rebuilt with s/s mains, no cost spared throughout, demonstrated running sweetly and quietly.

CENTRE=A Vire 6/BVR rebuilt new mains, gaskets, seals etc throughout as good as they get.

LHS= A 2000 model Vire 7 awaiting rebuild to order.

my son assisting me, and spare seats for owners to come and have a cuppa and chat or collect prearranged parts and advice

many new OEM spares in cases...

VireEngines.com
Top of pagePrevious messageNext messageBottom of page Link to this message

vireuk
Member
Username: vireuk

Post Number: 7
Registered: 05-2008
Posted on Thursday, June 04, 2009 - 07:13 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

copyright 2009 VIRE UK

Beulieu Boat jumble, we exhibit each year - great fun and effective way to raise awareness of 'Vire' - on display 13th May 2009;

RHS=Vire 12 rebuilt with s/s mains, no cost spared throughout, demonstrated running sweetly and quietly.

CENTRE=A Vire 6/BVR rebuilt new mains, gaskets, seals etc throughout as good as they get.

LHS= A 2000 model Vire 7 awaiting rebuild to order.

my son assisting me, and spare seats for owners to come and have a cuppa and chat or collect prearranged parts and advice

many new OEM spares in cases...

VireEngines.com

Top of pagePrevious messageNext messageBottom of page Link to this message

vireuk
Member
Username: vireuk

Post Number: 8
Registered: 05-2008
Posted on Thursday, June 04, 2009 - 07:15 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

copyright 2009 Vire UK

Top of pagePrevious messageNext messageBottom of page Link to this message

Kelly Proposch
Visitor
Posted on Sunday, June 13, 2010 - 03:24 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi,
I recently bought a 2nd VIRE BVR inboard petrol engine. The Carb on the new engine is Solex. This appears unusual for the manuals I have read.
Any clues to finding out if this original part or where to locate info to tune them?

Thanks,
Kelly.
Top of pagePrevious messageNext messageBottom of page Link to this message

vireuk
Member
Username: vireuk

Post Number: 9
Registered: 05-2008
Posted on Wednesday, March 19, 2014 - 03:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

yes the Solex float/slide carburettors were on some very early BVR models circa 1960. later on all 6 and 7 used the tillotson membrane/throttle carb which is safer and better at starting, only those are now available new and i have spares. the earlier solex is pretty basic but not easy to use morse on unlike morse designed tillotson. The solex mixture constantly needed tuning for starting/running, and to prevent it leaking. personally i found them so much trouble misfiring, i would throw it away and fit a tillotson.
Top of pagePrevious messageNext messageBottom of page Link to this message

vireuk
Member
Username: vireuk

Post Number: 10
Registered: 05-2008
Posted on Wednesday, March 19, 2014 - 03:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

We are exhibiting Sun 27th April 2014
at Beaulieu boat jumble as usual
stand R206 next to the information hut.
thanks for all your support. if anyone has any restorable vire bits or engines, particularly let me know e.g dynastarts, engines, pistons.

I should have a Vire 6 BVR ive restored, plus hopefully a Vire 7 & Vire 12 as usual on display along with various new and uprated parts for you to see.
Top of pagePrevious messageNext messageBottom of page Link to this message

vireuk
Member
Username: vireuk

Post Number: 11
Registered: 05-2008
Posted on Wednesday, March 19, 2014 - 03:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

2 Vire 7's refurbished earlier in 2014, taking 2 weeks each.
foreground completed Vire 7 for Egythene24 with full electrics, morse and s/s upgrades.

in background another Vire 7 half complete (completed and shipped to Belfast a week later)
Top of pagePrevious messageNext messageBottom of page Link to this message

David Culmer
Visitor
Posted on Tuesday, November 18, 2014 - 02:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a Vire 12 from Nick ( the blue one in the photos in fact),.
I am very pleased with it. When servicing it, Nick has been very helpful and given his time and knowledge without charge. These are great engines and he's the man to get them from.
(I have no interest other than being a satisfied customer).

Add Your Message Here
Post:
Bold text Italics Underline Create a hyperlink Insert a clipart image

Username: Posting Information:
This is a public posting area. Enter your username and password if you have an account. Otherwise, enter your full name as your username and leave the password blank. Your e-mail address is optional.
Password:
E-mail:
Options: Automatically activate URLs in message
Action:

Administration Administration Log Out Log Out   Previous Page Previous Page Next Page Next Page

Home | Classifieds | History | Technical | Links | Store | About Us | Email
&copy 2005 OldMarineEngine.com, P.O. Box 188, Forest Dale, VT 05745-0188 • Phone: 802-247-4864 • All rights reserved.
   Marine Engine Seloc Repair Manual Lookup Tool

marine gas engine repair and restoration
