Pierce/Racine

Old Marine Engine » One and Two Cylinder Gas Inboards » Pierce/Racine « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

frank_petran
Senior Member
Username: frank_petran

Post Number: 122
Registered: 05-2009
Posted on Friday, September 24, 2010 - 09:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am looking for an early Pierce/Racine or Racine engine (made in Racine) in the 1 to 3 hp range. I can be reached via email or phone (262-284-3650.
Thanks. Frank
Top of pagePrevious messageNext messageBottom of page Link to this message

frank_petran
Senior Member
Username: frank_petran

Post Number: 124
Registered: 05-2009
Posted on Sunday, October 17, 2010 - 05:06 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I still haven't been able to locate an early Pierce/Racine marine engine that was made in Racine. Does anyone have a lead as to where I can locate one? Thanks, Frank
Top of pagePrevious messageNext messageBottom of page Link to this message

rick_pierceracine
New member
Username: rick_pierceracine

Post Number: 1
Registered: 04-2011
Posted on Thursday, April 21, 2011 - 08:45 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Pierce Single Cylender 2 cycle...1900 or older

What kind of boat do I need for this - Museum Condition motor ?

Thanks, Rick 219 926 5847 before noon if possible
Top of pagePrevious messageNext messageBottom of page Link to this message

johnny
Senior Member
Username: johnny

Post Number: 387
Registered: 03-2006


Posted on Friday, April 22, 2011 - 10:57 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Frank,

Are you wanting to purchase one of these engines or just locate people that have them? I think there are two or three collectors on the engine forums that own this type of engine but I don't think they want to sell.
Top of pagePrevious messageNext messageBottom of page Link to this message

joe_pierce
New member
Username: joe_pierce

Post Number: 1
Registered: 04-2011
Posted on Monday, April 25, 2011 - 10:15 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Original Pierce (pierce engine co. , racine wisconsin on flywheel)

Restored and running beautifully : museum condition 3hp 2cycle creampuff. . .

any help finding a pierce boat/kit/plans would Make My Day/year/life, thanks, Joe
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2631
Registered: 11-2001
Posted on Tuesday, April 26, 2011 - 07:56 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Joe, possble to post some photos of your engine?
Maybe could get a closer date of mfgr !

If difficulty with posting here, email to me and I can post them.

oceanblu10@comcast.net

*
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2632
Registered: 11-2001
Posted on Wednesday, April 27, 2011 - 10:58 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

Pierce Engine photos

EBAY # 270738894676


p1

p2

p3

p4

p5


*
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 421
Registered: 12-2003


Posted on Wednesday, April 27, 2011 - 11:31 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I really like the sweeping manifold. But, I don't think the professional restorer got the ignition quite right.
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 588
Registered: 07-2002


Posted on Wednesday, April 27, 2011 - 08:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I think his professional restorer has the flywheel on the wrong side, possibly the crank in backwards.
Top of pagePrevious messageNext messageBottom of page Link to this message

joe_pierce
New member
Username: joe_pierce

Post Number: 2
Registered: 04-2011
Posted on Wednesday, April 27, 2011 - 11:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Guys !

I have forwarded all this stuff to Rick,who JUST now retired, got himself a computer (can't run it) and dug yhis old motor from the corner of the Garage. . .special thanks for the photo/posting , he is going to Flip whrn he sees his motor on-line, Frank
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2633
Registered: 11-2001
Posted on Thursday, April 28, 2011 - 07:23 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

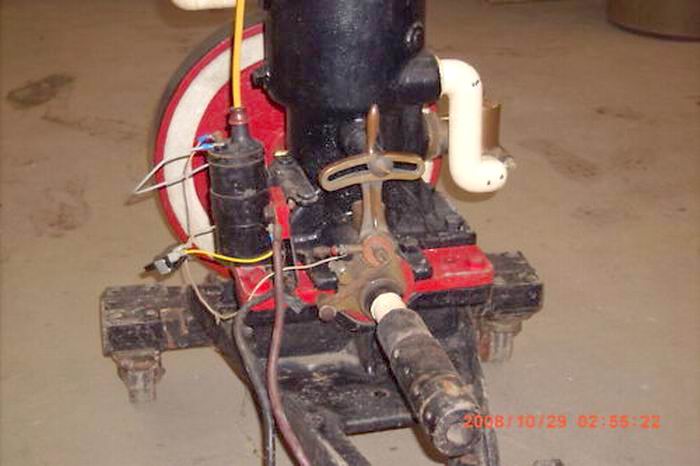

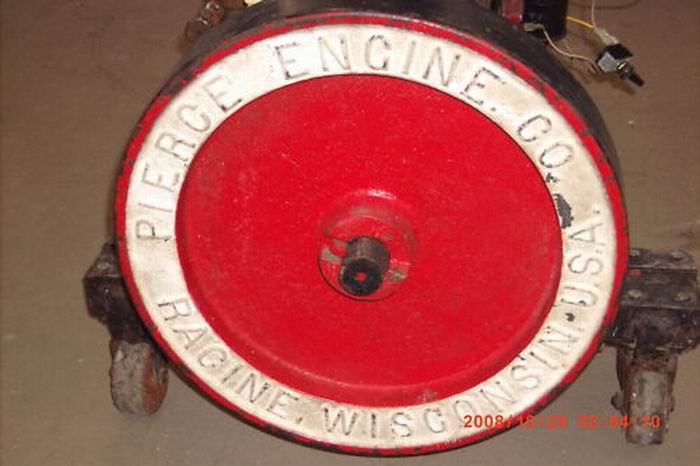

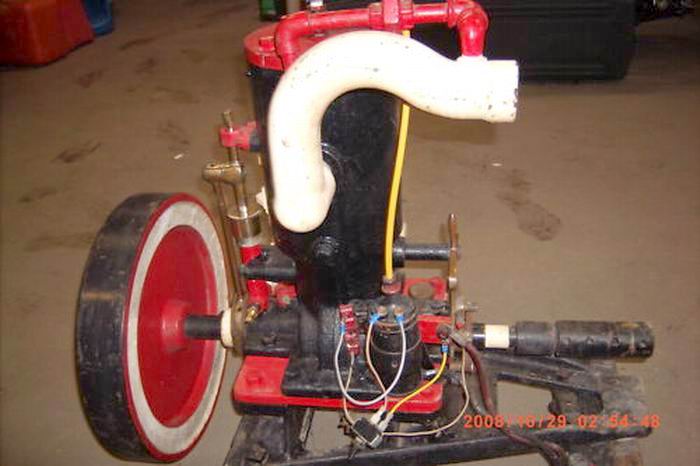

This solid flywheel cast swept exhaust Pierce is the second of this early design I've seen,I thought its crank was in reversed too. The consistant trait of Pierce engs up through the teens is the intake and intake heat stove ports are on the starboard side and Exhaust on port side, these two solid wheel engs comply ?
The later design engs with holed flywheels are consistant with timer front / wpump aft and intakes are consistantly starboard side, the even later design headless engs continue this trait.
Spent time months ago trying to get a photo ad or any info on these early solid wheel engs to find a date of mfgr but no luck yet.

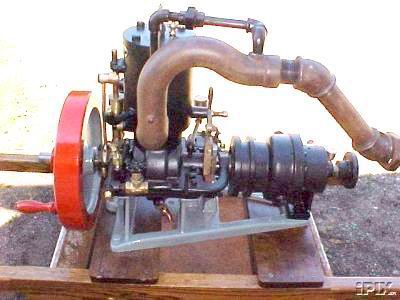

stside

portside

1905 is oldest photo ad I can find so far, it
is a holed flywheel.

05ad

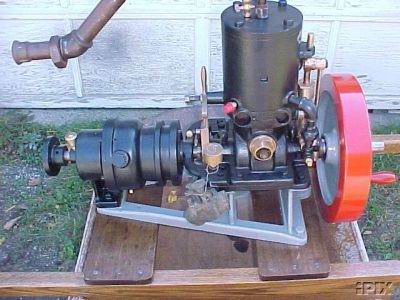

red4hole

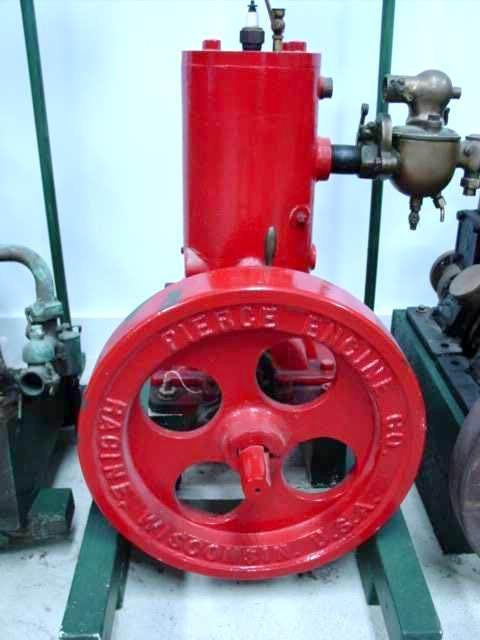

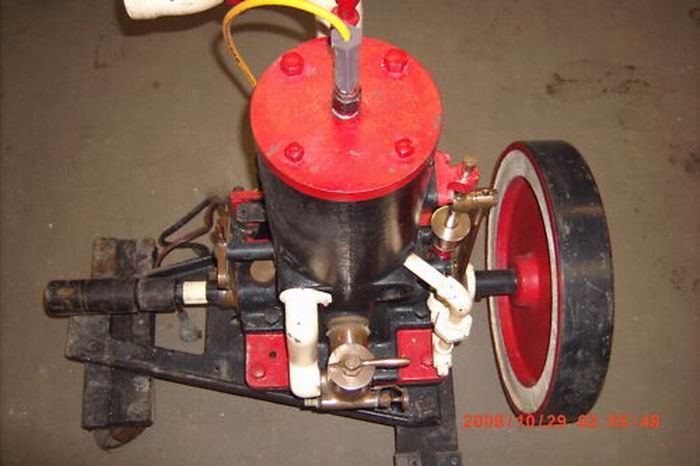

this is holed wheel eng in Clayton Museum
we discussed months ago here, the presumably hard starting one with the carb in the exhaust port.

Clayton4


*
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 589
Registered: 07-2002


Posted on Thursday, April 28, 2011 - 06:51 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

That's my lesson for the day. After I posted I looked at the exhaust and it looked like it was in the correct position pointing to the rear.All of the Pierces I've seen until now have the timer behind the flywheel.
Top of pagePrevious messageNext messageBottom of page Link to this message

scott_n
Senior Member
Username: scott_n

Post Number: 190
Registered: 02-2008
Posted on Monday, May 02, 2011 - 04:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

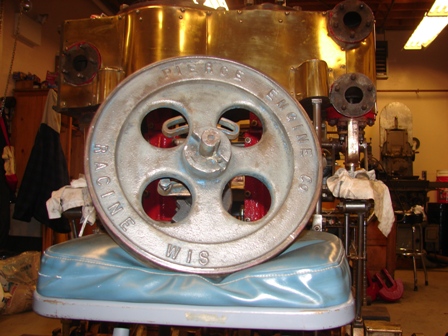

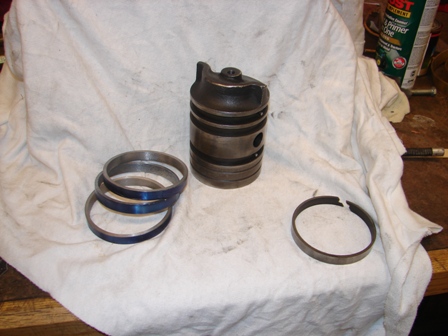

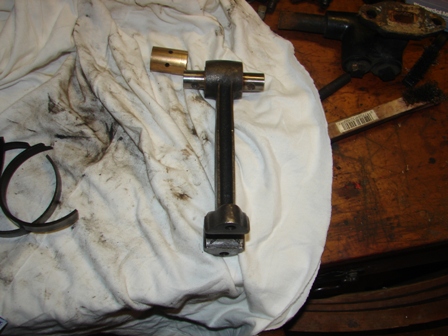

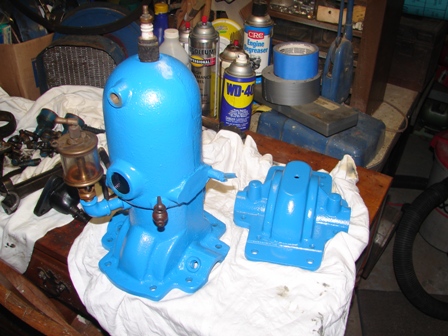

hear is some picturs of my Pierce that I am restoring

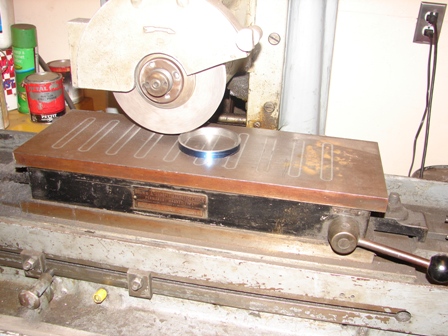

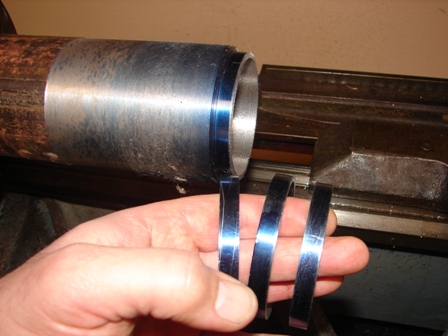

so far I fit it with new rist pin barring makeing new rings, cleand and painted the two castings and found all the high crowned bolts
