Fisherman marine engine.

Old Marine Engine » One and Two Cylinder Gas Inboards » Fisherman marine engine. « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Posted on Sunday, November 23, 2003 - 07:37 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

A friend gave me a 6hp Fisherman marine engine, made by Loane-Hiltz Eng'g Co. Baltimore MD. It's in rough shape but restorable. This engine is a 4 cycle, atmospheric intake with a sideshaft. The cam for the exhaust is a flat disc with two ramps. The rocker arm has a roller that can shift to the inner or outer arm, making it reversable. The engine was disassembled with some parts missing and some in rough shape. Anyone have any info or know of an engine I can get pictures of? Thanks, J.B.
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Day
Posted on Sunday, November 23, 2003 - 08:28 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a friend that has one in excellent condition will see if I can get him to help.
The engine is direct reversing by shifting the exhaust valve timing and I was surprised how will it worked. Will get back to you as I will have to write a letter as I have no esy way to get to him on the phone. He is only 40 miles away as the crow flies but about 200 by road. The Chesapeake Bay is in between us. Regards, Dick
Top of pagePrevious messageNext messageBottom of page Link to this message

mechman@nexicom.net
Posted on Sunday, November 23, 2003 - 10:50 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Goodday J.B. Another thought is to contact the Baltimore main library & inquire if they have something on the Co. --Also Owls Head museum may have something as well --It sounds like a great find and a very interesting engine! "All the best" Larry Healey
Top of pagePrevious messageNext messageBottom of page Link to this message

rholcomb
Posted on Sunday, November 23, 2003 - 02:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i believe there was an article in the reflections colum sometime in the 80`s or early 90
in the gas engine magazine
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Sunday, November 23, 2003 - 08:29 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

J.B.

1913 index of marine eng makers lists "Loane-Hiltz
Engineering Co.as makers of 6hp "Fisherman"

This 1914 ad says " Loane-Trask Eng'g Co. Seems this would date your eng as not newer than 1913 ??

Loane Trask

1923 says "Loane Eng.g Co.

Loane 1923

I'll keep looking for other pics.
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Day
Posted on Sunday, November 23, 2003 - 09:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

JB Does your engine have the glass port on the STBD side of the cylinder. The two Fishermen engines I have seen in this area both have a boss about 1 inch thick when you include the cast iron retainer of the 1/4" thick glass. Its about 8" high and 3" wide. The glass not covered by the retainer is about 6" high by 1-1/2" wide. Have not seen either engine in about ten years so forgive my shakey memory.
Allows you to see into the water jacket of the cylinder. Never seen anything like it on any other engines. It doesn't show on Richard's picture.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Sunday, November 23, 2003 - 10:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Dick,

This is 1916 ad, Lot of design changes since 1914,
looks to have glass plate. Very interesting engine.

Ad says 15 years on the market??


Fisherman 1916
Top of pagePrevious messageNext messageBottom of page Link to this message

Keith
Posted on Monday, November 24, 2003 - 08:08 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

J.B.
I have a Fisherman. It has the windows, which currently have sheet brass in them. I will take pictures and send them.
Keith
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Posted on Wednesday, November 26, 2003 - 08:27 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks for the info, I realy appreciate it. My engine has the openings for the glass, the one on the cylinder is behind the camshaft, the one in the head is in the back of the engine. I can't help but think that the reason for these openings was to aid in holding the cores, a large core plug. The glass is a fancy cover up instead of a plate. Keith, if you can get me some pictures of the roller and reversing lever on the rocker arm and one of the water pump it would be a big help.
Thanks again,
J.B.
Top of pagePrevious messageNext messageBottom of page Link to this message

Tom Stranko
Posted on Friday, January 02, 2004 - 07:15 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

JB,
I somehow missed the last 3 or 4 entries (including the illustration) showing your engine. Very unusual!!
Top of pagePrevious messageNext messageBottom of page Link to this message

richardday
Senior Member
Username: richardday

Post Number: 940
Registered: 11-2003


Posted on Thursday, March 03, 2011 - 08:10 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

A slight footnote to history. The man I got my Fisherman from grew up in a MD. Eastern Shore family and he told me the watermen insisted the glass had to be available in a typical local hardware store or else the watermen would not buy the engine. I took this to mean typical window glass not some very thick specially cut glass. For what its worth have not taken mine apart but as the vertical glass is cracked that will be a summer job this year.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2600
Registered: 11-2001
Posted on Thursday, March 03, 2011 - 11:15 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

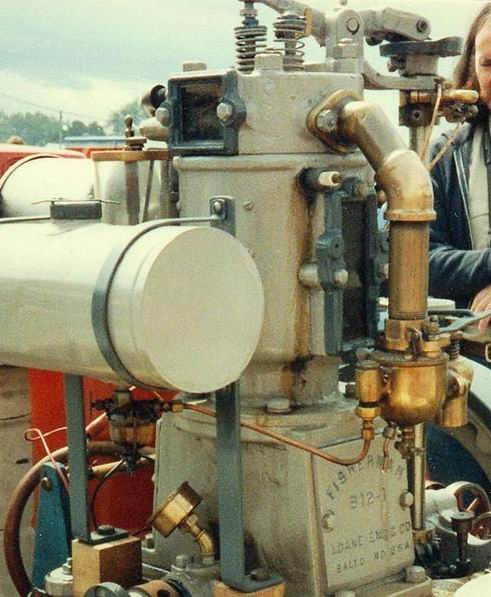

This model Fisherman has the glass plate on side of the cylinder and one on the rear of the head ?

F2plate

*
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 1321
Registered: 01-2002


Posted on Thursday, March 03, 2011 - 10:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Yes it does. I am quite sure the engine above now belongs to Mr Day. If it isn't his the one he has has glass plates/covers
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

richardday
Senior Member
Username: richardday

Post Number: 942
Registered: 11-2003


Posted on Saturday, March 05, 2011 - 05:15 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie, I think that photo was taken at Arcadia, MD. about 25 years ago. It sure looks like my engine. Hope to bring it to CMM and hope JB will start it for me. The previous owner warned me not to reverse it unless it is tied down very well.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2604
Registered: 11-2001
Posted on Saturday, March 05, 2011 - 06:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
The engine above I posted because it showed the glass ports, most collectors around the world probably never heard of such a thing, after going through over 1800 eng names not another one used glass ports on the engine except accessories like oilers etc .

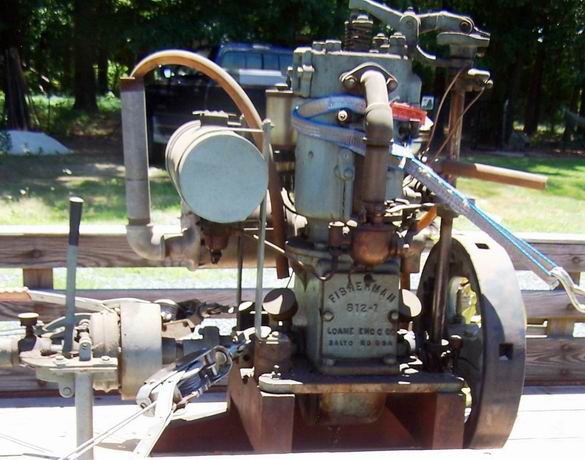

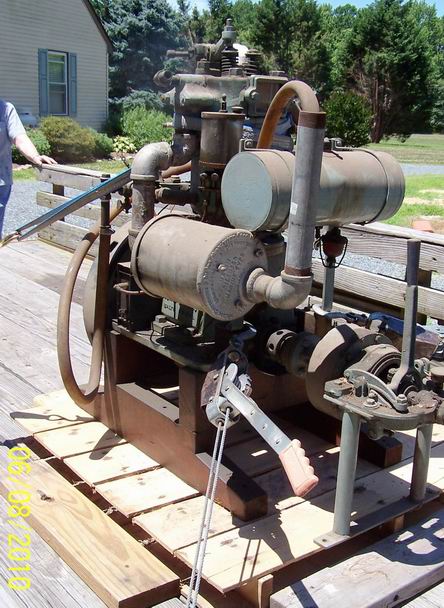

This I believe is Dick's Very nice "Fisherman"

F2

F3

F4


*
Top of pagePrevious messageNext messageBottom of page Link to this message

robert
Senior Member
Username: robert

Post Number: 420
Registered: 07-2003
Posted on Sunday, April 10, 2011 - 01:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

And did any other maker use that very practical split flywheel hub? Must have much appreciated at times!
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2619
Registered: 11-2001
Posted on Sunday, April 10, 2011 - 04:02 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Five listed in my info !

This one is Bob Legnon's C.T. Wright posted in january.

J.B. or John S. when Bob visits could you show him this, one of the reasons for the post was to get this info to him about his engine, talking to him on the phone last week his computer is not up and he missed it !

http://www.oldmarineengine.com/discus/messages/1/141316.html#POST34510

*
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 471
Registered: 12-2003


Posted on Thursday, January 26, 2012 - 12:29 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

1908

Top of pagePrevious messageNext messageBottom of page Link to this message

miro
Senior Member
Username: miro

Post Number: 593
Registered: 11-2001


Posted on Thursday, January 26, 2012 - 10:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I wonder what is meant by
"Rubbery Compression" ?

miro
Top of pagePrevious messageNext messageBottom of page Link to this message

gregoryan
Senior Member
Username: gregoryan

Post Number: 93
Registered: 09-2004


Posted on Thursday, January 26, 2012 - 11:09 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Yes, I questioned that "Rubbery Compression" yesterday, then thought of it again today [when i went past a rubber shop haha]. I think it means soft to deal with, as opposed to 'stiff' compression., as these brochures are always boasting ease of operation/ starting
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 1465
Registered: 01-2002


Posted on Friday, January 27, 2012 - 08:08 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I can positivly state the engine on the trailer behind the Dodge Pick up does NOT have rubbery compression. In fact I can't pull it through compression. When running it for Dick I had to bump the intake valve on the compression stroke to release some compression allowing me to start it.
My guess is that the engine can be bounce started since it is reversable
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 654
Registered: 07-2002


Posted on Friday, January 27, 2012 - 09:16 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

My Fisherman starts on the bounce, you would need a bar to get it over compression.
Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 344
Registered: 02-2002


Posted on Saturday, January 28, 2012 - 04:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I rubbery means it is not stiff and can be started on the bounce.
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 478
Registered: 12-2003


Posted on Sunday, January 29, 2012 - 10:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

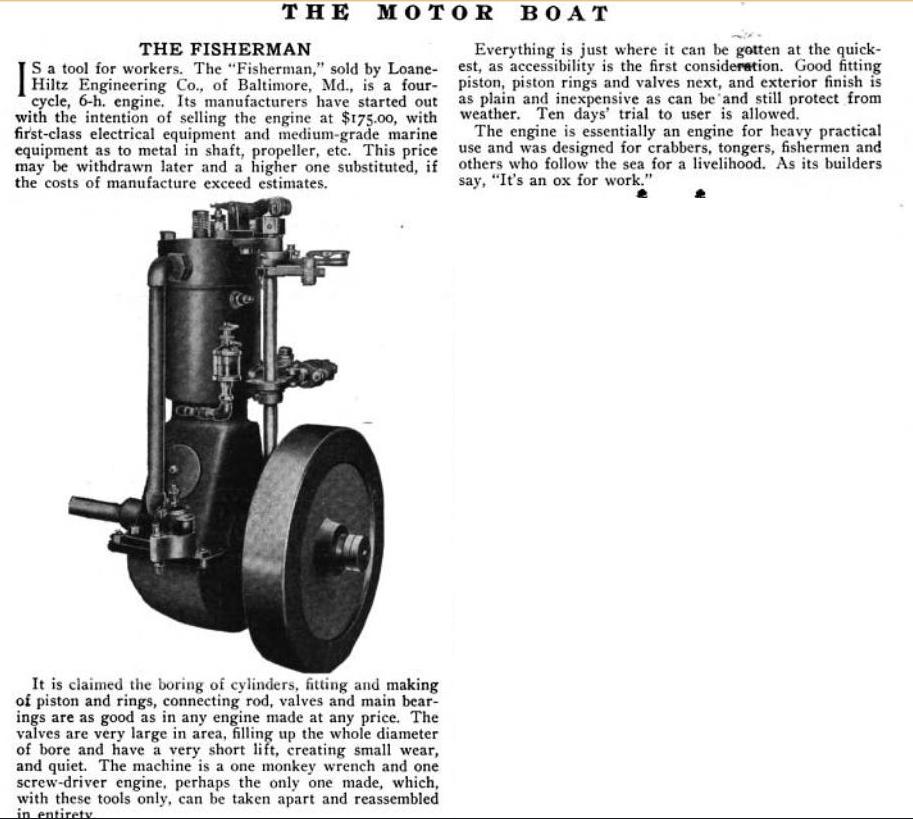

1907




So, I hope no one cheated, and used more than one monkey wrench, and one screwdriver.
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 512
Registered: 12-2003


Posted on Saturday, April 07, 2012 - 11:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

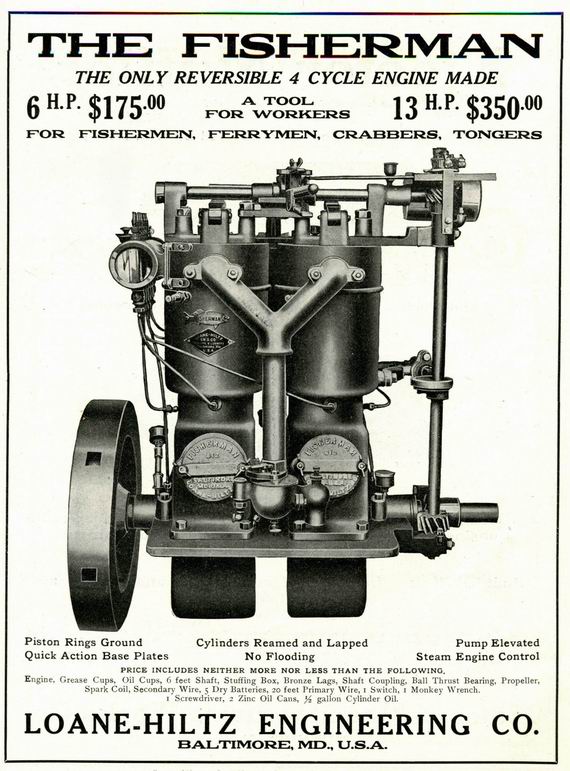

fisherman

Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2788
Registered: 11-2001
Posted on Sunday, April 08, 2012 - 11:51 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Cool old ads and article !

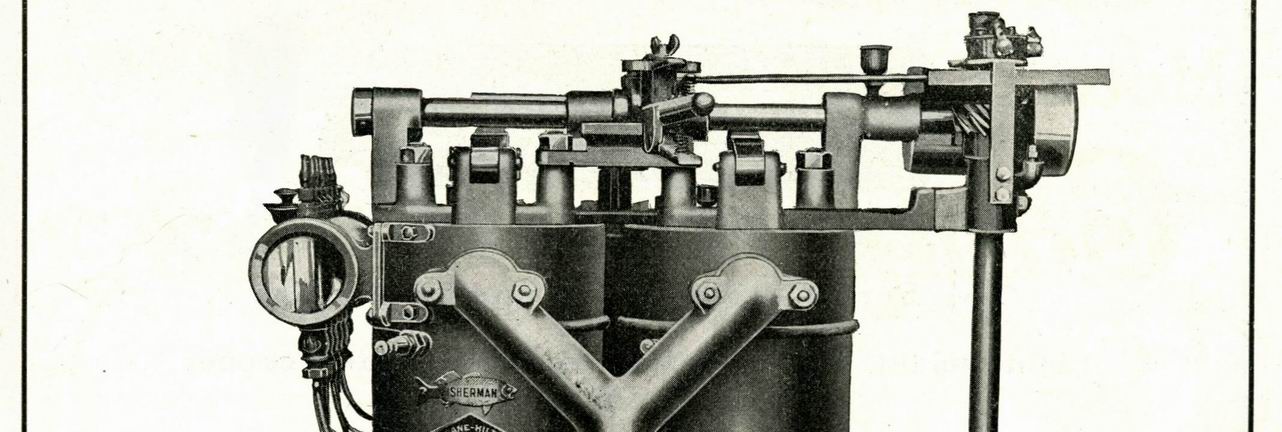

Anyone ever seen a twin FISHERMAN ?? Comes with a reverse gear, I guess reversing crankshaft rotation would be a real juggling act ??

*
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2791
Registered: 11-2001
Posted on Tuesday, April 10, 2012 - 09:43 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Searcher to JB to Me To here, Good Stuff !

Reversing the 4 cycle fisherman twin was a juggling act albeit the engineer that made the mechanism !


tad



trev




*
