1961 Buehler Turbocraft????

Old Marine Engine » Unknown Engines - post here with photos » 1961 Buehler Turbocraft???? « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Bret Leonard
New member
Username: big_country

Post Number: 1
Registered: 01-2008
Posted on Monday, January 28, 2008 - 01:43 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello everyone. I am having a tough time identifying my turbocraft. I bought this boat last year and I cannot find out the exact model of the boat. As far as I can tell the hull ID tag should have been under the rear seat which it is not. The boat is equipped with a small block chevy engine with the emblem "buehler turbopower 200" on the valve cover. It has what I believe to be a Chinook? 3 stage jet. My boat measures 17'6" It is titled as a 1962. Any help to identify the model would be great. Also anyone know of a website that has more exact info on these boats would be great. I found a pic of my exact boat. It is the center boat in the picture. Thanks alot, Bret.

center boat

Top of pagePrevious messageNext messageBottom of page Link to this message

Eugene Killen
Visitor
Posted on Friday, July 04, 2008 - 09:28 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hello, i have a 1961 buehler turbocraft jet 32. it too has a small block chevy engine in it. mine has a crusader marine information tag on the intake manifold that says it is a model 150 serial number TP1117. it also calls it a Buehler Turbopower 200. i have a video from the original owner in which they are removing the motor and the valve cover decals are there like yours. i also cannot find any hull id tag. my boat looks like the first one in your picture.i am curious if your boat has its engine tag and how close your serial number is to mine.
Top of pagePrevious messageNext messageBottom of page Link to this message

Bruce Hall
Senior Member
Username: bruce

Post Number: 178
Registered: 07-2002
Posted on Friday, July 04, 2008 - 05:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bret and Gene got my attention as I've had the great experience of a thrilling Jet boat ride on a river in Southwest New Zealands South Island.
The following web sites are very helpful WWW.speedduck.com Scroll down the homepage and click on Steve Snipes name-Steves spectacular web page!Also www.teshio.com/jetboat/index. This site lists help and info on nearly 150 Jet boat manufacturers-facinating stuff!Steve Snipes page gives the history of Buehler Turbocraft Co. along with some excellent color factory photos of early Buehler boats. Also check out www.fiberglassics.com
Top of pagePrevious messageNext messageBottom of page Link to this message

Darby Cohen
Visitor
Posted on Wednesday, July 16, 2008 - 11:40 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello, I just bought a 1961 15' 9" Turbocraft. The engine is a Ford Interceptor 150hp Y block with the crab manifold and 2 horizontal carbs. The tage on the jet reads, Hamilton Marine, Indiana Gear Works, Model # 2233, Ser. #2137-1. Hull #2233410.
From this info, can any one tell if the engine is a 292 cid, and how many stages the pump has.
Thanks. Darby
Top of pagePrevious messageNext messageBottom of page Link to this message

Eugene Killen
Visitor
Posted on Sunday, July 20, 2008 - 08:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hello darby, i also have a 1961 turbocraft, a jet 32 with a small block chevy in it.my tag on my jet pump is model number 2203 serial number 176-dd-pl. if yourpump is a 3 stage, it will have two bolted together sections, if its a 2 stage it will only have one. i am curious as to where you found your hull number, as i cannot find mine, thanks, Gene
Top of pagePrevious messageNext messageBottom of page Link to this message

Darby Cohen
New member
Username: darby_cohen

Post Number: 1
Registered: 07-2008
Posted on Sunday, August 10, 2008 - 01:14 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Gene, Thanks for the info. I sent you an email with more detail.Darby
Top of pagePrevious messageNext messageBottom of page Link to this message

Darby Cohen
New member
Username: darby_cohen

Post Number: 2
Registered: 07-2008
Posted on Sunday, August 10, 2008 - 01:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Gene, I just checked my email and my email to you did not go through. The only # that I found is on a small aluminum tag under the right rear seat that # is 0034. The pump is a 3 stage, 2233 is 3 stage, 2203 is supposedly 2 stage. I don't know how someone came up with the hull # it looks like they took the pump # and added 410. I was told that my boat is not a Buehler. There is a plaque that reads Manufactured by the Sooner Boat Co. Eldorado, Oklahoma. I'm in Reno,NV. where are you. Thanks again. Darby
Top of pagePrevious messageNext messageBottom of page Link to this message

keith thomas
Visitor
Posted on Friday, November 21, 2008 - 09:09 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i have a1959 buehler turbocraft with a flathead 6 greymarine 109hp. does ANYONE know where the hull # is?
Top of pagePrevious messageNext messageBottom of page Link to this message

TOM BINNINGER
Visitor
Posted on Tuesday, January 06, 2009 - 09:48 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I HAVE 3 TURBOCRAFTS 1 1959 AND 2 1960S THE HULL # IS ON THE LEFT SIDE UNDER THE REAR SEAT ON THE ANGLE BRACE
Top of pagePrevious messageNext messageBottom of page Link to this message

Eugene Killen
Visitor
Posted on Tuesday, January 13, 2009 - 10:09 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

my jet 32 never came with a rear seat, cant find a hull number anywhere, anyone have any ideas or have a boat that didnt come with a rear seat?
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie Bambauer
Visitor
Posted on Monday, February 09, 2009 - 12:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a '67 Beuhler Turbocraft. My sister has a '65, and my father has a '6?.
My grandfather sold these boats in the 50's and 60's.
Bret, you have an AMAZING watercraft, and a piece of history. Congratulations.
Here is the deal about Buehlers as I have experienced them. Of the 6 or so that I have seen in person, no 2 have been similar in:
1) powerplants (engines)
2) marinization (wet exhaust, whatever)
3) upholstery
4) floorplans

It's weird.
This must be a product of the fact that they were "experimental" and in the process of refinement throughout the lifespan of Buehler Turbocraft or Indian Gear Works.
As a result, I have found it impossible to buy parts, locate identifying plaques or badges on the boat (save the jet unit).
When I had to overhaul the steering on my '67, I realized it was rack & pinion style, whereas the one my grandfather passed down had a series of pulleys and cables running down either side of the boat!
I guess I didn't help anyone, but maybe some of you can relate to my experience? Thanks for letting me vent.
Top of pagePrevious messageNext messageBottom of page Link to this message

Brent Hardwick
Visitor
Posted on Wednesday, February 18, 2009 - 01:05 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hello there I have a little knowledge with the buehlers as my grandpa worked at Indiana Gear Works. He then opened his own boat business selling buehlers. My dad worked on these for many years. We still have a few parts. Anyway I myself have a 1959 16' and I also have a 1968 18' bolero I am finally going to sell I have had the 1968 for about 5 years and the 1959 for about a year and have since decided that I am not going to do anything with them. so they are for sale. If you have any other questions I can relay them to my grandpa and let you know what he has to say. He is not a comuter type of person. He identified both of my boats just by looking at them.

Email me with any questions brnthardwick@yahoo.com
Top of pagePrevious messageNext messageBottom of page Link to this message

Marty Gensler
New member
Username: quazzy

Post Number: 1
Registered: 04-2009
Posted on Tuesday, April 28, 2009 - 03:29 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hey all.. I've got what I've so far found to be a '62 Buehler Turbocraft. It's an oddball apparently because it's a 15'6" foot with a Y-block. Discovered it has a cracked and leaking (water) exhaust manifold (left side) and I'm trying to find someone who either might have one to sell, or know where to get one..? Or if you know any other interesting info on this boat, please let me know. This thing is near mint shape except for the manifold and a couple minor cosmetic things. I really wanna get it in the water for cruising again this summer, but I need that manifold so it stops filling up the hull with water! Let me know what you know, haha! Thanks, Marty quazzy350@hotmail.com
Top of pagePrevious messageNext messageBottom of page Link to this message

teresa dalton
Visitor
Posted on Wednesday, June 03, 2009 - 01:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i have a buehler turbocraft it has no back seat the serial # is 37 877 the IN. is 4575BA its model # is 75 SD its a straight six 2806830-1 # off the side of the motor and 07129 AM on the side of side of motor can any one tell me anything about my boat i know nothing
Top of pagePrevious messageNext messageBottom of page Link to this message

Marty Gensler
New member
Username: quazzy

Post Number: 2
Registered: 04-2009
Posted on Wednesday, June 03, 2009 - 10:05 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ok, I don't need the manifold.. Didn't realize it was aluminum when it was on the motor..duh..got it tig welded, so that's fixed. If anyone has a good amount of knowledge about these boats, please leave a post here saying that you do.. I'm looking to sell this boat because I'm laid off and need to keep food on the table. I can't find anywhere or anyone that can give me an approximate value to tell me what this thing is worth.. It's a '60 Buehler Turbocraft, Y-block Interceptor motor, approx. 15'6". I'm guessing it's a Jet 35..? This boat is near mint ORIGINAL condition! Everything from the working horn to the interior to the original wooden dipstick gas gauge still hanging from the stern light post! Does anyone have more info on this boat, and does anyone know where I can find a way to put a price on this thing? Any help is much appreciated!! Thanks, Marty


I tried to post a pic, but I can't get em to shrink small enough to post. I can send ya pics if ya wanna see it..
Top of pagePrevious messageNext messageBottom of page Link to this message

Frank Petran
Member
Username: frank_petran

Post Number: 29
Registered: 05-2009
Posted on Sunday, June 07, 2009 - 12:42 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

To all.
Go to fiberglassics.com, there might be some info there and a forum that might be of some help
Top of pagePrevious messageNext messageBottom of page Link to this message

loufamoso
Visitor
Posted on Wednesday, July 15, 2009 - 10:33 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

For Sale:
1961 Buehler Turbocraft Jetdrive
$6,500.00 as is:
extra jetdrive incld [as is]
16` Bass & Ski Boat
263ci Greymarine [Continental] rebuilt less then 50hrs.
Seaworthy [no leaks]
Trailer [needs tires]
Kingman, Arizona USA 1961 Buehler Turbocraft
Top of pagePrevious messageNext messageBottom of page Link to this message

Chris Wheeland
New member
Username: chris_wheeland

Post Number: 2
Registered: 02-2009
Posted on Thursday, July 16, 2009 - 04:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I found the hull number (12)on my TBC on the support for the gas tank (bow mounted). The boat is a 16 ft with a single stage pump, and a chrysler 225 slant 6. I don't really know the year but the pump output, water intake system and steering are all pre 64. I think that 64 is the year that the swim step and hand holds for boarding came along. There is no back seat. The front seat has front and rear facing seats with a full bench in the front and splits in the back with no center back rest. The steering wheel is on the left side and the throttle was originally a foot pedal. We changed that out for a stick in the 60's. I'd like to get the boat running again but the engine has a crack in the block water jacket. We ran it for years that way - just hit the bilge pump now and then. I'm looking for a replacement engine. Any help in suggested sources would be much appreciate.
Chris
Top of pagePrevious messageNext messageBottom of page Link to this message

Randy Phelps
Visitor
Posted on Tuesday, September 22, 2009 - 11:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello, My Dad had a 1962 Buehler Turbocraft white with red trim, I think it had a v-8 crysler engine in it and would love to find one for sale. You had to have a 100 foot ski rope to ski behind it or it would knock you off your skis! Please let me know! Thanks
Top of pagePrevious messageNext messageBottom of page Link to this message

Marty Gensler
New member
Username: quazzy

Post Number: 3
Registered: 04-2009
Posted on Tuesday, September 22, 2009 - 11:58 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hey Guys.. And Randy I don't know if you're interested, but my Buehler is goin up for sale! It's a '60 and I'm not sure if it's a Jet 34 or 35.. Can't find enough info to totally identify this thing. Ford Interceptor Y-Block 135 HP V8. Runs Great! Absolutely beautiful original condition. White and Aqua. Only needs a few minor things to be perfect.

I can't find anywhere to give me a real actual appraisal of it though.. As you can see from my last post, I've been trying to find out for a while.. All I've been told is that its worth at least, a bare minimum of 12 grand to collectors. If anyone wants it, I'm asking $10,000 flat for it. Serious inquiries only please. Just reply on here and let me know if you want any more info and pics. Thanks All! Later, Marty
Top of pagePrevious messageNext messageBottom of page Link to this message

loufamoso
Visitor
Posted on Sunday, September 27, 2009 - 11:05 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Marty...I found, from other sites and inquiries that if the Hull is sound, and it runs, it`s worth at least 8 Grand to collectors.

Mint referbs have been sold for 17-30 grand, dependent on year [60-64`s]

61 Buehler Turbocraft
Top of pagePrevious messageNext messageBottom of page Link to this message

loufamoso
Visitor
Posted on Sunday, September 27, 2009 - 11:34 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Randy,
I know what you mean about the loooooooong ski rope needed because of the roostertail this model kicks up...too close and you can be *braindead*..lol

My boat is for sale IF you are really interested. It is seaworthy, but needs TLC due to non use and my neglect in the past. Back of front seat could use new covering, entire hull could use fresh paint, but the engine Roars!

I can be reached HERE, or at loufamoso@yahoo.com for serious inquiries.

61 Buehler Turbocraft
Top of pagePrevious messageNext messageBottom of page Link to this message

daniel frazier
New member
Username: danno

Post Number: 1
Registered: 10-2009
Posted on Thursday, October 01, 2009 - 11:10 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

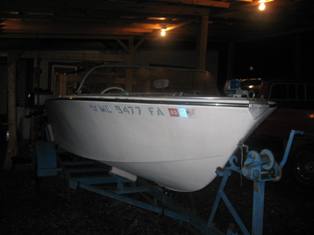

I just traded for this boat. It is a Jet 32, but I have no idea what year and can't find a drive like it anywhere on the web. Any help in ID would be greatly appreciated.

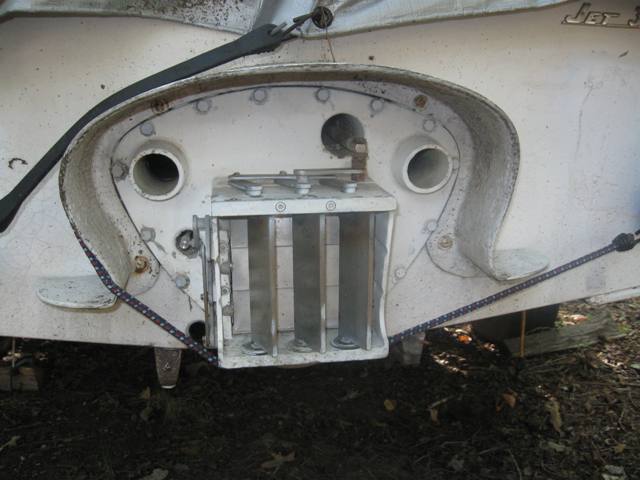

drive

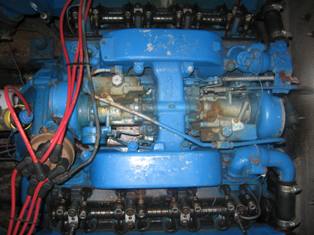

engine

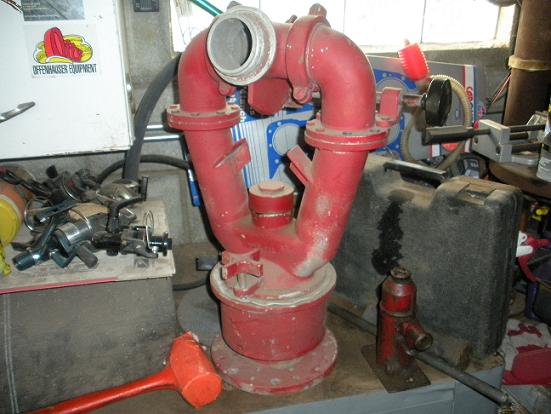

pump
Top of pagePrevious messageNext messageBottom of page Link to this message

Marty Gensler
Member
Username: quazzy

Post Number: 4
Registered: 04-2009
Posted on Friday, October 02, 2009 - 01:34 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Lou for the info.. That's about the same that I've figured out through the crazy journey with this boat..not much for accurate info anywhere out there..

And Danno, I'm not completely sure, but I'm betting your boat is most likely a late 59. You've got a 292 Y-Block ford with dual carbs, which is 150hp (mine's a '60 with one carb 135hp) but the same motor.. I think you have the older style drive on yours though which I believe is '59. Hope that helps a little..
Top of pagePrevious messageNext messageBottom of page Link to this message

daniel frazier
New member
Username: danno

Post Number: 3
Registered: 10-2009
Posted on Friday, October 02, 2009 - 09:36 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks! Do you have any idea where I could find an ID number on this boat?

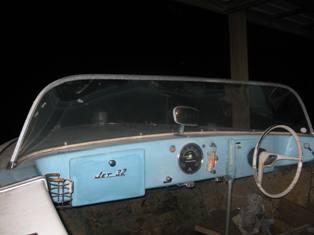

dash
Top of pagePrevious messageNext messageBottom of page Link to this message

Darby Cohen
New member
Username: darby_cohen

Post Number: 3
Registered: 07-2008
Posted on Friday, October 02, 2009 - 01:06 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have two 1961 Turbocrafts that look like the one on the left in the picture at the top of the page. One is a Buehler the other was built by the Sooner Boat Mfg. Co. of Elderado, OK. Both hulls are identical. The hull # for the Buehler is on the left rear seat support, the Sooner # is on the right rear seat support. Both have 3 stage pumps with 150hp 256cid Ford Y block Interceptor engines NOT 292cid. According to " INTERCEPTOR MARINE MASTER PARTS AND ACCESSORIES CATALOG" the 135, 145, and the 150hp engines are all 256cid, the difference in hp is in the carbs. 135hp single side draft 150 dual side drafts, I don't know what the 145 has. If I can figure out how to load the "MASTER" I will post it. Darby
Top of pagePrevious messageNext messageBottom of page Link to this message

Darby Cohen
Member
Username: darby_cohen

Post Number: 4
Registered: 07-2008
Posted on Friday, October 02, 2009 - 01:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I hope this loads. Good info on the Ford Y blocks.
application/pdfInterceptor Marine
Interceptor Marine.pdf (97.1 k)
Top of pagePrevious messageNext messageBottom of page Link to this message

loufamoso
Visitor
Posted on Saturday, October 10, 2009 - 09:49 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Yeah Marty, I guess *Ole Boats* are like paintings, they`re worth what`s "in the eye of the beholder"!

Daniel: I answered your post on the other thread, but to repeat, that`s a Hydrolicly driven Flume for direction and speed of Boat! Not sure of year/vintage!

61 Classic
Top of pagePrevious messageNext messageBottom of page Link to this message

daniel frazier
Member
Username: danno

Post Number: 4
Registered: 10-2009
Posted on Tuesday, October 13, 2009 - 08:47 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I finally found the ID tag in the back of the glovebox. It is E0074. Would that be 1959?
Top of pagePrevious messageNext messageBottom of page Link to this message

daniel frazier
Member
Username: danno

Post Number: 5
Registered: 10-2009
Posted on Wednesday, October 14, 2009 - 09:24 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

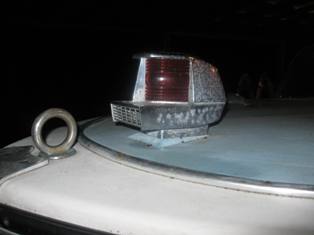

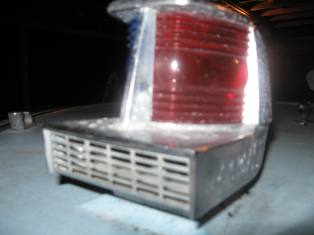

Here are som more photos...and I think I figured out where George Lucas was inspierd for Darth Vader's character...the nav light :-)

vader






Top of pagePrevious messageNext messageBottom of page Link to this message

daniel frazier
Member
Username: danno

Post Number: 6
Registered: 10-2009
Posted on Friday, October 16, 2009 - 05:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Darby: Thanks for the PDF. According to my engine # A82L0396A, this is a 1960 135 HP but it does have 2 carburetors (confusing). I still can't find anyone who can identify whether or not the nozzle is original or where it came from. I don't see any evidence of a change, but who knows. It looks like it has jet engine fan blades for the reverse gate and direction. Super sharp at the leading edge and flat across the back held in with what appears to be bronze bushings. The whole thing appears to be carved out of billet aluminum and the vanes look to be titanium. Look like military aircraft stuff...
Top of pagePrevious messageNext messageBottom of page Link to this message

Darby Cohen
Member
Username: darby_cohen

Post Number: 5
Registered: 07-2008
Posted on Friday, October 16, 2009 - 06:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Daniel, The only two Turbos that I have seen in person are the two that I have. I've seen lots of pictures and almost every one is different. Yours is the only one with that control setup. The serial # is the way it left the mfg. Some one through the years may have wanted a few more ponys and added the second carb. I hope to work on the "Sooner" Turbo this winter. I just got the upholstery done and will be going through the rest of the "stuff". Keep in touch. Darby
Top of pagePrevious messageNext messageBottom of page Link to this message

daniel frazier
Member
Username: danno

Post Number: 7
Registered: 10-2009
Posted on Friday, October 16, 2009 - 10:15 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Darby. I'll continue to post some photos as I progress. I hope to have it fired up by Sunday night. I had to have one of the exhaust manifolds welded (unfortunately). I can't believe they're cast aluminum. I did find carb kits and a gasket set. I guess I can say I'm "obsessed".
Top of pagePrevious messageNext messageBottom of page Link to this message

Mike Laarman
New member
Username: thegriz

Post Number: 1
Registered: 10-2009
Posted on Sunday, October 18, 2009 - 07:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i just brought home a jet 36. the tag says turbocraft from indiana gear works with boat number H0014. the boat is 23 feet long with two straight six's in it. does anyone know anything about this boat? i see some info on other models, but not this one.
Top of pagePrevious messageNext messageBottom of page Link to this message

Marty Gensler
Member
Username: quazzy

Post Number: 5
Registered: 04-2009
Posted on Monday, October 19, 2009 - 02:49 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ok, I just tried again to post pics of the boat, and again it says they're too big to attach.. How the hell do ya get em smaller so they'll fit on here?? They're all around 1.10-1.45 MB and it says they hafta be under 100k to fit here... Any ideas?? I friggin' hate computers!! Thanks..
Top of pagePrevious messageNext messageBottom of page Link to this message

Roger DiRuscio
Senior Member
Username: solarrog

Post Number: 380
Registered: 03-2002


Posted on Monday, October 19, 2009 - 03:12 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

http://www.oldmarineengine.com/resize/resize.html
go here
Top of pagePrevious messageNext messageBottom of page Link to this message

gary mccausland
New member
Username: gaz

Post Number: 1
Registered: 10-2009
Posted on Monday, October 19, 2009 - 07:25 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hi to you all i live in ireland and have a dowty turboprop 16ft, Ive owned it about 3 years and have falling in love with its cool lines somebody fitted a 1600 diesal engine to it, Then i fitted 1800 diesal, what engine should it have? And where do i get a wind screen from?all help would be grate , its a dowty turboprop with a hamilton jet regards gaz
Top of pagePrevious messageNext messageBottom of page Link to this message

daniel frazier
Member
Username: danno

Post Number: 8
Registered: 10-2009
Posted on Friday, October 30, 2009 - 03:32 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

You should have a gasoline engine. You can't be getting enough rpm out of a diesel to enjoy it properly. I'm not sure of all of the engines they used, but mine has a Ford Interceptor 292 with dual side draft carbs. There were 283's and Graymarines and Chrysler...
Top of pagePrevious messageNext messageBottom of page Link to this message

R Somerville
Visitor
Posted on Thursday, December 03, 2009 - 07:30 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi All,
Glad to have stumbled across a page about Turbocrafts. I'm trying to figure out what to do with my dad's old jet boat; it's the 18'6" Buehler Turbocraft; exact same model as shown in James Bond/Thunderball. Powered by 401/445ci Buick Graymarine V8 with 3-stage pump. In 1964 he ordered 2 thick/reinforced hulls from Hamilton/NZ and had both outfitted by Indiana Gear Works, for a one-time-in-history whitewater run down and up Cataract Canyon on the Colorado River in Utah, in 1965. He grew up in Moab, and wanted (as an engineer) to see if a jet could do it! Both boats made it down but only this one made the upstream run; still the only man to ever do it! Dad has passed (William Somerville) and I am sentimental about the boat, but would like to do the right thing with it; whatever that is.
The engine is down with a broken piston (ran Unleaded gas in it a few years ago and it failed). Boat only has like 100hrs on it.
Anyone have any ideas on direction, value, should I rebuild the engine, etc?
Thx -- feel free to email
formulawun1@yahoo.com
Top of pagePrevious messageNext messageBottom of page Link to this message

R Somerville
Visitor
Posted on Thursday, December 03, 2009 - 07:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

btw - if anyone hasn't heard of or seen the movie of Jon Hamilton expedition downstream and then back upstream in Grand Canyon (1963?), it's amazing! We had it on 16mm, and as a kid I loved watching the jets battle the rapids upstream.
That's what inspired my dad's trip, and there are some pictures out there on the web.

Google on 'turbocraft grand canyon guy mannering bill austin' or any combination of those words,
or try http://www6.nau.edu/library/scadb/subjectreferal.cfm?subject_note=Jet%20boats
Top of pagePrevious messageNext messageBottom of page Link to this message

kevin broaddus
Visitor
Posted on Sunday, March 07, 2010 - 07:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hi i just got a bolero with a v8 chrysler powered buelher turbo jet drive@18 to 20feet the carb is off im sure motor is frooze from sitting the engine cover and many of the wood acceceries areweather rotted i was going to junk the boat for the trailer thought i wuold see if it was worth something to someone
Top of pagePrevious messageNext messageBottom of page Link to this message

kevin broaddus
Visitor
Posted on Sunday, March 07, 2010 - 07:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

my email for above boat lynn_broaddus@hotmail.com
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard A. Day Jr.
Senior Member
Username: richardday

Post Number: 851
Registered: 11-2003


Posted on Monday, March 08, 2010 - 01:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

A sad story which jet boat owners need to be atentive to. Back about 1960 I walked down to our community dock on the Severn River and one of my neighbors was in the process of launching a brand new jet boat about 18'. He pulled it from around the launching ramp and tied alonside the dock and gassed up. Meanwhile I was in the bilge of my boat changing a battery. I heard his engine start and he reved it up still tied to the dock. Almost instanly there was a loud shrieking noise which lasted about 10 seconds and the engine came to an instant stop. Needless to say I jumped up to see what had happened. It soon become clear he had left a 100' coil of 1/2" nylon anchor line on the bow deck and a loose end had acidentlly been drooped in the water. The pump was destroyed and bearings and couplings etc. were ruined. He sold the boat to someone and forgot boating as a retirement pastime. So have fun but beware of loose lines is always a good practice.
Top of pagePrevious messageNext messageBottom of page Link to this message

Andrew Choate
Visitor
Posted on Wednesday, March 17, 2010 - 03:00 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hey guy i also have a 1962 Buehler Turbocraft. my father and i restored it about 5 years ago.. it has the original 327, it had 230hp tags on the valve covers before we rebuilt it. does any of your have a center console? well anyway mine also has the Hamilton 3stage jet... and if you go to fiberglassics you will find a pic of it. its fireball mettalic red and paris white. too everyone that has one... keep it.. it will provide fun for years to come. send me a message with any questions. andy1396003@yahoo.com
Top of pagePrevious messageNext messageBottom of page Link to this message

david leet
Visitor
Posted on Saturday, March 20, 2010 - 08:07 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

$200 on craigslist and i snagged it! im searching the internet for info on this boat. from what i seen today its a turbocraft jet35. was told it has the 327. looked like a v8. no title,son was decessed. registered last in 93. was told it ran when they parked it under the shed. i dragged it out today and went and got 4 tires. gonna go bring it home tomorrow. its dirty but looks complete. just need to recover seats etc.. and of course monkey w/ the engine. good deal huh? i dont know sqat about boats but i wanted one and this looked like a deal. this looks like a informative site here. gonna search for some id's on it tomorrow.
Top of pagePrevious messageNext messageBottom of page Link to this message

david leet
Visitor
Posted on Saturday, March 20, 2010 - 08:09 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

$200 on craigslist and i snagged it! im searching the internet for info on this boat. from what i seen today its a turbocraft jet35. was told it has the 327. looked like a v8. no title,son was decessed. registered last in 93. was told it ran when they parked it under the shed. i dragged it out today and went and got 4 tires. gonna go bring it home tomorrow. its dirty but looks complete. just need to recover seats etc.. and of course monkey w/ the engine. good deal huh? i dont know sqat about boats but i wanted one and this looked like a deal. this looks like a informative site here. gonna search for some id's on it tomorrow.
Top of pagePrevious messageNext messageBottom of page Link to this message

daniel frazier
Member
Username: danno

Post Number: 9
Registered: 10-2009
Posted on Saturday, March 20, 2010 - 09:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

If it has Carter YH carbs on it take them off and get a downdraft on there if you actually want to use it.
Top of pagePrevious messageNext messageBottom of page Link to this message

david leet
New member
Username: mach1dleet1

Post Number: 1
Registered: 03-2010
Posted on Tuesday, March 23, 2010 - 08:19 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

can someone help me figure the year of my turbocraft jet 35? i dont have a title. found the tag under the back seat. it has a 18,assume thats the length. the boat number is DO242. motors the 327 tags and all thats still there. yes it has the carter carbs.
Top of pagePrevious messageNext messageBottom of page Link to this message

Tom Keets
Visitor
Posted on Monday, May 24, 2010 - 05:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hey Guys,

I am looking for some information about the engine I have in my Buehler.

There is a Crusader Marine Engine Model 170J and Serial Number TP1626 in it, but I am not sure if this is a Small Block Chevy.

Google turns up nothing, Crusader Marine, knows nothing.

Can anyone help, or point me in the right direction? I am looking for specs on this engine Is it a 350? How many horsepower etc?

Thanks for any help!
Top of pagePrevious messageNext messageBottom of page Link to this message

Andrew Menkart
Moderator
Username: andrew

Post Number: 1065
Registered: 11-2001


Posted on Monday, May 24, 2010 - 05:51 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Tom,
We have manuals for the Crusader engines from the early 1960's, but they don't show a 350cid model. See Crusader Manuals.

You can also ask on the board at MarineEngine.com, there is a Crusader section there.
Top of pagePrevious messageNext messageBottom of page Link to this message

TomKeets
Visitor
Posted on Monday, May 24, 2010 - 06:14 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thank you Andrew!
Top of pagePrevious messageNext messageBottom of page Link to this message

TomKeets
Visitor
Posted on Wednesday, May 26, 2010 - 08:25 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have another number off the block. Its 8878014. I still cannot positively ID this.

Help ? :-)
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie Bambauer
Visitor
Posted on Wednesday, June 02, 2010 - 03:42 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Guys.
Potentially moving out of the country, and regrettably must part ways with my Beuhler Turbocraft. Here's the ad for it.

http://miami.craigslist.org/pbc/boa/1771353456.html

ernie_bambauer@yahoo.com

Best,
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

steve bennett
Visitor
Posted on Sunday, July 25, 2010 - 08:32 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Does anyone know of a 18/19 foot buehlercraft for sale? Please call or email thanks steve
Top of pagePrevious messageNext messageBottom of page Link to this message

brian richel
New member
Username: brichel1

Post Number: 1
Registered: 10-2010
Posted on Tuesday, October 19, 2010 - 10:32 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hello just found your site here. very informative. I have what i think may be a buehler turbocraft. It is 21'10" including swim platform. It is 100% aluminum, deep hull, 3 stage jet. steering on jet is inside of transom with hull formed around it, powered by a chrysler 440 335hp, dated 10/71 on block. chrome vents and cleats on top look indentical to other turbocrafts, as well as helm wheel.It is a port side driver. It is a fire and rescue boat complete with bow and stern water cannons. water cannons are powered by the jet when water is diverted upward into them by way of valve controlled lever below throttle. It is a very unique boat. floor is all aluminum diamond plate.
Top of pagePrevious messageNext messageBottom of page Link to this message

Chris Wheeland
Member
Username: chris_wheeland

Post Number: 10
Registered: 02-2009
Posted on Thursday, October 21, 2010 - 11:15 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Brian - any photos? This sounds waaaayyyyy cool.
Chris
Top of pagePrevious messageNext messageBottom of page Link to this message

brian richel
New member
Username: brichel1

Post Number: 2
Registered: 10-2010
Posted on Saturday, October 23, 2010 - 08:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

having trouble with upload. maybe too many mp? hull numbers that are legible i doubt are real they. guy i got it from says it was a chicago fire boat in the 60s.
Top of pagePrevious messageNext messageBottom of page Link to this message

Visitor
Visitor
Posted on Wednesday, October 27, 2010 - 03:11 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Brian – I don’t think your boat is a Buehler because they only produced fiberglass hulls. However, they did sell/license their pumps to other boat manufactures. It’s possible that your hull may have been manufactured by a different company and outfitted with Buehler components……especially where it sounds like it could have been a one-off/custom build.

Early Buehlers used to provide engine cooling via the pumps (as you described for the water cannons) so it definitely sounds like it could have some Buehler-developed technology.
Top of pagePrevious messageNext messageBottom of page Link to this message

brian richel
New member
Username: brichel1

Post Number: 3
Registered: 10-2010


Posted on Friday, October 29, 2010 - 12:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

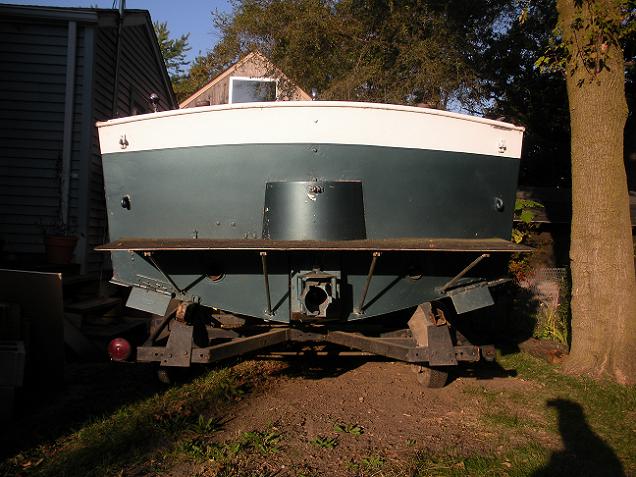

this is a pretty wild vessel. ill bet this thing is very loud. the arch in bow of boat is same as 3 boats in pic at top of this post. top sides have an 11"w platform to walk on.
Top of pagePrevious messageNext messageBottom of page Link to this message

brian richel
Member
Username: brichel1

Post Number: 4
Registered: 10-2010


Posted on Friday, October 29, 2010 - 12:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

trying to find out maker of this beast. very well built alum hull.



Top of pagePrevious messageNext messageBottom of page Link to this message

Chris Wheeland
Member
Username: chris_wheeland

Post Number: 11
Registered: 02-2009
Posted on Friday, October 29, 2010 - 04:19 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Brian,
She is a lovely beast - able to take a direct hit from a 5" shell and keep on pumping. As I said off line, it is very possible that Indiana Gear works had a commercial operation not unlike Penn Yan. My TBK has it's SN under the foredeck. Another place is to look for a USGC capacity plate which may or may not exist on a boat of this age. It is usually on the transom on port side.
Chris
Top of pagePrevious messageNext messageBottom of page Link to this message

Visitor
Visitor
Posted on Friday, October 29, 2010 - 09:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hey again Brian - that pump is definitely a mid-late 60's Buehler/Hamilton 2-stage (modified to accomodate the flange at the rear). The jet deflectors/nozzles, windshield, shift and steering wheel also appear to be mid-late 60's Buehler.

Again, I'd be surprised if the aluminum hull was actually built by Buehler. However, based on these pictures, I would say that, at the very least, they played a role in outfitting the boat.....and, quite possibly, in it's design.

I might be able to find out for you....and will post back.
Top of pagePrevious messageNext messageBottom of page Link to this message

brian richel
Member
Username: brichel1

Post Number: 5
Registered: 10-2010


Posted on Saturday, October 30, 2010 - 10:51 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hey more info! guages are all stewart wagner. hr meter reads 473hrs. these are pics of the water cannon on stern and fire hydrant upside down in bow.



Top of pagePrevious messageNext messageBottom of page Link to this message

brian richel
Member
Username: brichel1

Post Number: 6
Registered: 10-2010


Posted on Saturday, October 30, 2010 - 11:44 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

cast # on jet are I.G.W 2233121 then below it W.B. A.C. or W.8.A.C. impeller cover #2303105. dash has red and green indicator lights that say flo-vue water pump and ignition indicator. also has morse steering box. 2 4"dia orange marine hoses feed fire hydrant in bow.
Top of pagePrevious messageNext messageBottom of page Link to this message

Darby Cohen
Member
Username: darby_cohen

Post Number: 7
Registered: 07-2008
Posted on Saturday, October 30, 2010 - 12:31 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Brian,
I've been trying to post,but I'm doing something wrong.
Back in Oct. of '08 there are some post about Turbocrafts by me and several others. I have 2 Turbocrafts, one is a Buehler the other is a Sooner. Both are 15'-9" with 256" 150hp FORD Y block Interceptor engines, with 3-stage Indiana Gear Works pumps.
The 3-stage pumps have 2 sections, like yours, and Model # starts with 2233. These units are much smaller than yours.
Indiana Gear Works (Buehler) pumps were used by different fire department the that had wharfs, such as Chicago.
Hope this goes through.
Darby
Top of pagePrevious messageNext messageBottom of page Link to this message

Darby Cohen
Member
Username: darby_cohen

Post Number: 8
Registered: 07-2008
Posted on Saturday, October 30, 2010 - 01:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Brian,
Now that I'm not messing up, another site to check out is, fiberclassics.com, they have a lot of info. on all types of boats, fiberglass, aluminum, and wood. There are a lot very informative people that have a world of info. and are willing to help.
Post as many pictures and info. that you have.
Good luck.
Darby
Top of pagePrevious messageNext messageBottom of page Link to this message

brian richel
Member
Username: brichel1

Post Number: 7
Registered: 10-2010


Posted on Sunday, October 31, 2010 - 05:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

think i may be onto something. found brochure for jetboats there. there are 2 boats in second to last pic. 1 is prc22 and prc18. i believe mine could be the prc22. has a lot of the same features. says hull material is glass. mine is aluminum. has bow cannon like mine. same handrail like mine.
Top of pagePrevious messageNext messageBottom of page Link to this message

Visitor-X
Visitor
Posted on Tuesday, November 02, 2010 - 09:39 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Brian - Darby was right on.....Buehler sold several boats to Chicago.

Although I'd previously said what the brochure suggests (that Buehler's only construction option was fiberglass), after seeing the picture of your hull, I'm leaning in the direction of saying that Buehler built it....or had it built to their design. It's a dead-ringer for period Buehlers.

Also, anyone who's owned more than one Buehler will tell you, no two are identical in construction. Their designs were work-in-progress and they were also known for building, pretty much, whatever someone ordered.....and, apparently, an aluminum hull wasn't out of the question.

Great boat.
Top of pagePrevious messageNext messageBottom of page Link to this message

Visitor-X
Visitor
Posted on Friday, November 12, 2010 - 11:03 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Brain - according to someone who used to work for Buehler, the fiberglass fire boat hulls were built, for Buehler, by Thunderbird Boats. So, it's possible that they also built the aluminum hulls like yours.
Top of pagePrevious messageNext messageBottom of page Link to this message

ChipGrono
Visitor
Posted on Thursday, March 03, 2011 - 05:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

My dad had a Turbocraft years ago...owned it since almost new until it was destroyed in a barn fire while in winter storage. The thing is I have never seen a boat or a picture of one like it. I believe it was 19 ft, it had a small cabin with head. Most likely a 1961 but maybe a 60 or 62. Grey Marine Fireball V8 188. It had a hatch in the bow and duel 18 gal fuel tanks on the sides. Seat in the back and a folding seat up front for the driver only. RH drive. I remember the shift was electric/hydrolic and troublesome. The boat also always loved to take on water. Anybody ever see anything like this?
Top of pagePrevious messageNext messageBottom of page Link to this message

daniel frazier
Member
Username: danno

Post Number: 10
Registered: 10-2009
Posted on Tuesday, March 08, 2011 - 02:31 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am selling my Jet32 (photos in prior posts). I will not be able to finish it. Make me an offer.
Top of pagePrevious messageNext messageBottom of page Link to this message

Fred Abbe
Member
Username: fabbe

Post Number: 7
Registered: 04-2009
Posted on Wednesday, March 16, 2011 - 05:58 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

DO NOT TRY THIS WITH YOUR FANTAIL LAUNCH
popjpeg{142056,JET DRIVE ANTICS}
Top of pagePrevious messageNext messageBottom of page Link to this message

Dale Maxwell
New member
Username: maxone

Post Number: 1
Registered: 05-2011
Posted on Tuesday, May 17, 2011 - 02:36 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i have a storage business and a buehler turbocraft boat was left unclaimed. It is red @ white with a Ford motor. It has tags mtz24281l404 and 60 A0 0501. I cannot load any pictures but i will email some if someone can help me id this jet boat. Dale
Top of pagePrevious messageNext messageBottom of page Link to this message

plungeroo
Visitor
Posted on Thursday, January 05, 2012 - 02:57 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have restored a 1959 Turbocraft witha Mercury small block ski engine. The three stage Hammilton Jet is overwhelmed. You must feather the engine to get it to speed or the impellers will slip. Does any one have any experience reworking the impellers to have more surface area such as the newer modern jets screw type impellers? My only other option is to change from the 1:1 gear ratio.
Top of pagePrevious messageNext messageBottom of page Link to this message

VisitorX
Visitor
Posted on Friday, January 06, 2012 - 10:28 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Plungeroo - you may have already checked this but, just in case, I’d start by measuring the tolerance/clearance between the impellers and the housing. If the impellers and/or the wear ring are worn (from pushing sand, etc), it will result in increased clearance/gap and a cavitating condition. Also, if you’ve had the pump apart as part of the rebuild process, you may want to confirm that you don’t have any air leaks……meaning that the pump isn’t sucking air in.

If everything checks out, you might take a shot at contacting Hamilton to see if they A) have impellers that will still fit that unit (you’d be surprised) or B) have a partner resource they could refer you to. Scott Jet and other performance jet companies will custom make impellers……but you’ll pay dearly for them. You could also do a google search for sprint/race boat builders. If you find someone willing to give you a few minutes, you may get more knowledge and direction than you would from any of the bigger companies/manufactures.

Buehler/Hamilton pumps were very rugged units and, if they’re in good operating condition, it’s not easy to overwhelm them. I don’t know what kind build you have on your Merc but there are guys running 350+ hp motors on stock Buehler pumps without issue.

Good luck. Would love to see some pics of the 59 if you have any.
Top of pagePrevious messageNext messageBottom of page Link to this message

yvon
Visitor
Posted on Saturday, March 24, 2012 - 01:05 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i have a coplete dowty jet drive for sale was strip off a turbocraft had plans for it but never did nothing best offer take it
Top of pagePrevious messageNext messageBottom of page Link to this message

Moira Walsh
New member
Username: moiraannie

Post Number: 1
Registered: 05-2012
Posted on Sunday, May 27, 2012 - 04:31 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi All,
My brother has a Indians Gear Works jet drive, model # 2233 serial # 2148-0 (?a 2-stage pump). He needs to dissemble the drive. If anyone has any tips, advice, tales to tell, I'd really appreciate hearing it. Or If anyone thinks there might be manual or instructions somewhere, please let me know where to look. Thanks, Moira in Minnesota
Top of pagePrevious messageNext messageBottom of page Link to this message

tom richel
Visitor
Posted on Monday, May 28, 2012 - 01:39 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hey, hows it goin all u boaters? been at work tryin to get this thing in the water. got motor done ready to go in. wiring is good. having probs w the jet going back together. got all new seals and bearings. prob is the stator inside the aluminum housing of the jet has broke loose and is moving around in the housing. I assembled the jet and u can see the stator does not line up with the impellers either. Have u guys ever encountered this where the center stainless part breaks loose and will spin inside the jet housing? I am thinking to cure this 1 would have to take out the and add material to fins on the fins an resweat it back inside the housing. Or weld an alum curb up against the fins so it can not spin, because that water bearing has to be able to stable to support that shaft. what say U guys?
Top of pagePrevious messageNext messageBottom of page Link to this message

matthilbert
Visitor
Posted on Tuesday, June 12, 2012 - 09:36 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have just purchased a 1959 Turbocraft with the 135 hp interceptor motor. my problem is that the reverse bucket and the windshield are missing. Where would be a good place to source these parts?interceptor
Top of pagePrevious messageNext messageBottom of page Link to this message

Chris Wheeland
Member
Username: chris_wheeland

Post Number: 12
Registered: 02-2009
Posted on Wednesday, June 13, 2012 - 11:18 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

matt
for windshields try:
http://www.edston.net/
Chris Wheeland
Top of pagePrevious messageNext messageBottom of page Link to this message

Chris Wheeland
Member
Username: chris_wheeland

Post Number: 13
Registered: 02-2009
Posted on Wednesday, June 13, 2012 - 01:30 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

matthilbert

Can you post a picture of the stern of your boat? The Berkley pumps have a "bucket" but the TBKs don't. I'm curious to see your configuration.

Chris
Top of pagePrevious messageNext messageBottom of page Link to this message

Marty Gensler
Member
Username: quazzy

Post Number: 6
Registered: 04-2009
Posted on Thursday, June 14, 2012 - 03:17 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

If anyone is in the market for a cool boat, my '60 Beuhler is still for sale. 15'6", Y-Block 135 hp, Completely original in aqua and white, and in fantastic shape for a 50+ year old boat! Needs a couple minor things like a shift indicator cable and one of the little "wing" windows that broke. Runs great, looks great. Still laid off and need the cash. $5000 obo. I can email ya pics.
Top of pagePrevious messageNext messageBottom of page Link to this message

Chris Wheeland
Member
Username: chris_wheeland

Post Number: 14
Registered: 02-2009
Posted on Friday, June 15, 2012 - 01:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

MISTAKE - On June 13 I wrongly stated that the TBKs did not have a bucket which upon further study I find is wrong. My apologies to you all.
Chris Wheeland
Top of pagePrevious messageNext messageBottom of page Link to this message

Visitor X
Visitor
Posted on Thursday, June 21, 2012 - 01:02 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Matt - if your outdrive (nozzle) is original 1959, you wouldn't/shouldn't have a reverse bucket. Rather, there is a guillotine-style "gate" or "diverter" that raises and lowers to create your forward, neutral and reverse positions (and maybe that's what you're describing). You're sure it's not actaully stuck up in the housing right? The gates on the early model (59 being the earliest) were hydraulically raised/lowered so, if that system fails, the gate can remain stuck in whatever position it was in at the time. If that gate did, in fact, fall out of the unit, you'll probably need to A) find another complete drive unit or B) have a new one fabricated.

Chris - in defense of the statement you subsequently corrected, almost all Buehler drive variations employed the aforementioned gate/plate....which wasn't anything like what we'd call a bucket in the Berkley sense. Buehler did a lot of experimenting on live production models so you can never say never to the existence of some bucket designs......but, generally speaking, you were right.
Top of pagePrevious messageNext messageBottom of page Link to this message

Jason Mahfouz
Visitor
Posted on Sunday, July 01, 2012 - 03:47 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am writting in hopes that someone has a wiring diagram for the dash gauges in a 64 Buehler Turbocraft that featured the Crusader 327 and AC Delco Instruments. I am in the final stages of a restoration and the instrument wiring is about all i have left to do. Unfortunately the gauges had all been taken out at the point I bought it several years ago, but they are all there
Top of pagePrevious messageNext messageBottom of page Link to this message

Chris Wheeland
Member
Username: chris_wheeland

Post Number: 15
Registered: 02-2009
Posted on Monday, July 09, 2012 - 11:02 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Visitor X
Yes, my statement about buckets was based on the TBKs I have been around. I have never seen one with a bucket. All of the boats in our family and our friends had the mechanical gate reverser.
Jason
That is a beauty you are finishing. My uncle had one with the Chrysler 318 and a column shift. Is that your shifter on the floor? Were the combings original to the boat?
Chris Wheeland
Top of pagePrevious messageNext messageBottom of page Link to this message

John Stimson
Visitor
Posted on Thursday, September 06, 2012 - 06:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The Buehler 7.5" pumps did not have a bucket.

The 8.9", 10", 12" 16.5" and 20" pumps did have a bucket
Top of pagePrevious messageNext messageBottom of page Link to this message

Rick campbell
New member
Username: rickc

Post Number: 1
Registered: 01-2013
Posted on Tuesday, January 29, 2013 - 05:39 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I know nothing about boats. I acquired a buehler through a real estate purchase. According to the previous owner the boat was rare. Apparently the president of the company ordered one of these exact boats for himself. Is there any way to know for sure what I have?
Top of pagePrevious messageNext messageBottom of page Link to this message

Bruce Hall
Senior Member
Username: bruce

Post Number: 360
Registered: 07-2002
Posted on Tuesday, January 29, 2013 - 07:52 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Try posting on vintagejetboats.com This site is for pre-war II antique marine engine collectors/enthusiasts.
Top of pagePrevious messageNext messageBottom of page Link to this message

RYN SULLY
Visitor
Posted on Wednesday, April 03, 2013 - 10:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

SELLING PARTS FOR A 1964 BUEHLER TURBO-JET BOAT
HAS INTERCEPTOR MOTOR BLOCK, UNCRACKED WINDSHIELD, GAUGES, SHIFTER, JET 32 PUMP, EMBLEMS/BADGES EXC... PLEASE EMAIL WITH SPECIFIED INTRESTS. THANK YOU
RYNSULLY@GMAIL.COM
Top of pagePrevious messageNext messageBottom of page Link to this message

Katie O'Gorman
Visitor
Posted on Friday, April 19, 2013 - 01:47 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello all, I have an old Turbocraft jet drive and the impellers and housings need replacement. I am wondering if anyone knows where I would be able to locate these? Or could point me in a direction to possibly locate them? Model #2233 Serial #2461-1. Thank you :-)
Top of pagePrevious messageNext messageBottom of page Link to this message

ken
New member
Username: shully

Post Number: 1
Registered: 07-2013
Posted on Friday, July 05, 2013 - 03:36 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi all, I'm glad to see such intense discussion on this topic. I have been involved with a Buehler Cutty Sark for the past 5 years and am still wondering how to decipher the serial number. I found it under the helm seat foot rest. it is 43A6002. anybody?? Thanks to 72hornet and a guy from Hungary I know the Cutty Sark came into the lineup starting in 1966. when I got it it was an extreme basket case. you can find my progress in iBoats. under Buehler Project. It has a 3 stage pump that was so locked up I could not move the tiller arm with a hammer. cutlass bearings had to be fabed as did most everything else. I powered it with a 351 Mercuriser 255 HP. and had to fab a takeoff shaft. thanks for being there when we novices need help.
Top of pagePrevious messageNext messageBottom of page Link to this message

cowboy02usa
Visitor
Posted on Monday, September 16, 2013 - 10:31 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a 59 Turbocraft Cuddy. I removed the complete drive unit with gate/nozzle and three stage hamilton drive if anyone wants to make an offer...

Add Your Message Here
Post:
Bold text Italics Underline Create a hyperlink Insert a clipart image

Username: Posting Information:
This is a public posting area. Enter your username and password if you have an account. Otherwise, enter your full name as your username and leave the password blank. Your e-mail address is optional.
Password:
E-mail:
Options: Automatically activate URLs in message
Action:

Administration Administration Log Out Log Out   Previous Page Previous Page Next Page Next Page

Home | Classifieds | History | Technical | Links | Store | About Us | Email
&copy 2005 OldMarineEngine.com, P.O. Box 188, Forest Dale, VT 05745-0188 • Phone: 802-247-4864 • All rights reserved.
   Marine Engine Seloc Repair Manual Lookup Tool

marine gas engine repair and restoration
