Lockwood Ash Mag Bracket

Old Marine Engine » Timers, Magnetos, Ignition » Lockwood Ash Mag Bracket « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1428
Registered: 01-2002


Posted on Tuesday, August 30, 2011 - 02:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

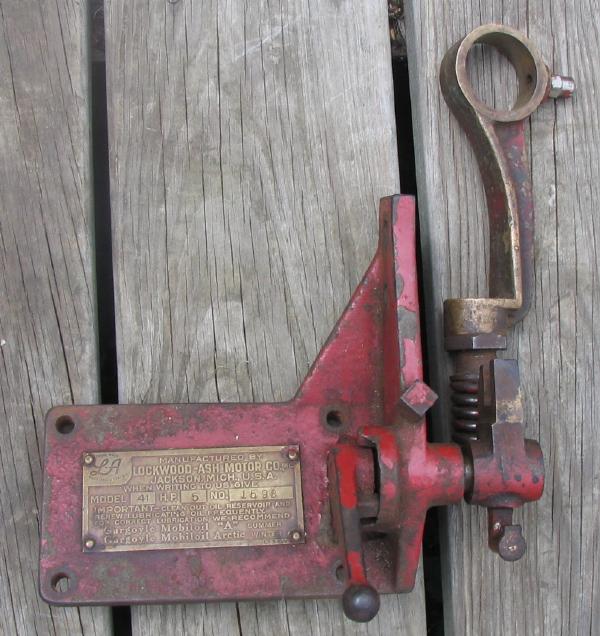

Pics from Bruce Hall.
My guess is that this came from one of the Lockwood Ash, DuBrie, Gray, Ace OK, US Motors Falcon and possibly other 4 stroke engines that mounted a Wico EK mag.
Can anyone confirm and post a pic?
Thanks
Ernie

Top of pagePrevious messageNext messageBottom of page Link to this message

William Schaller
Senior Member
Username: billschaller

Post Number: 436
Registered: 12-2003


Posted on Tuesday, August 30, 2011 - 02:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I went and looked at my Dubrie, and it looks like it is a piece of junk. It has a chain drive to a water pump and a FM mag. However, I did find this picture of an Amanco made Dubrie on the net. I did not know Amanco made them.

Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 620
Registered: 07-2002


Posted on Wednesday, August 31, 2011 - 08:25 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

John Smietana has a 41 with the Wico mag. The manual I have says the Wico was used on # 1200 and below, I guess this tag proves you can't believe everything you read.
Top of pagePrevious messageNext messageBottom of page Link to this message

jamie hurry
Member
Username: primetrucks

Post Number: 23
Registered: 03-2004
Posted on Friday, September 02, 2011 - 02:16 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

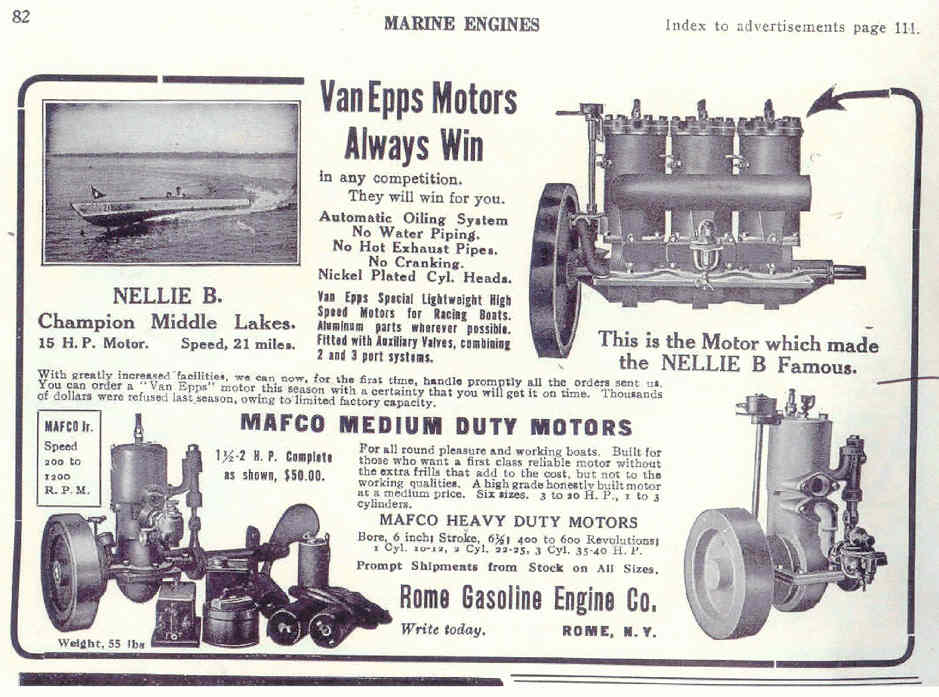

hi bruce did MAFCO make farm engines too. note the flat knob on the timer handle on a marine engine. picked a small engine on wooden cart two flywheel same flat handle timer,intake and exhaust same belt driven water pump .MAFCO ENGINEMAFCO ENGINEcall me at 225-268-4191
