More Atwater Kent

Old Marine Engine » Timers, Magnetos, Ignition » More Atwater Kent « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1870
Registered: 01-2002


Posted on Sunday, September 21, 2014 - 12:49 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Did some digging and measurements on some Atwater Kent Ignition stuff.
Here is what I found:

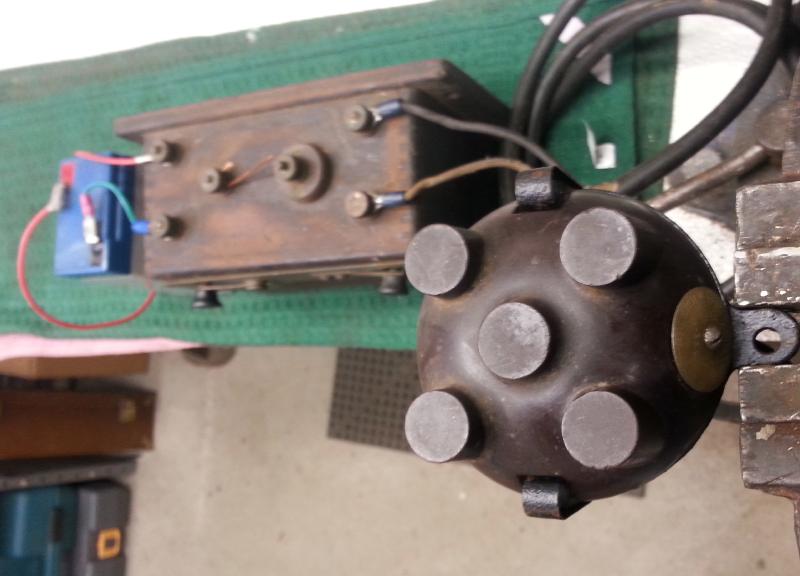

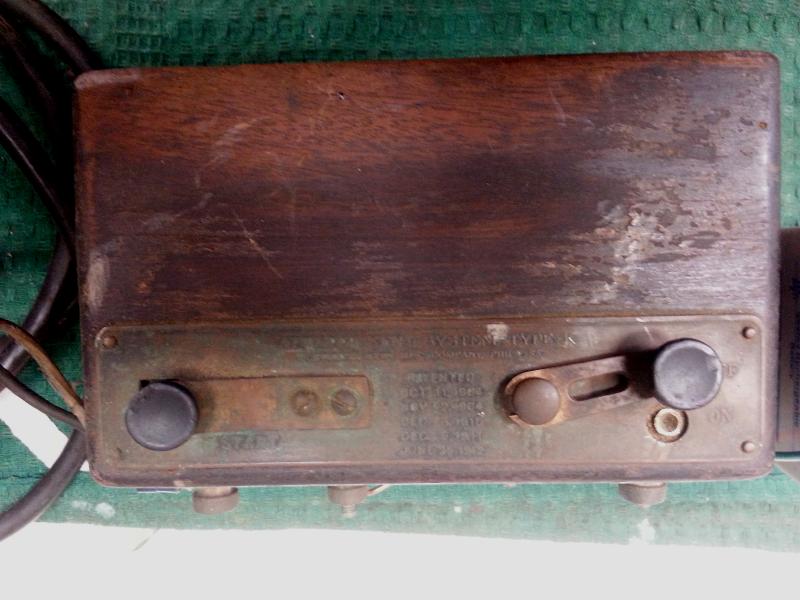

Switch on the left is START. Pressing this will make a spark starting the engine if it is at TDC with the combustion chamber full of air/fuel mixture.

Switch on the right is ON/OFF

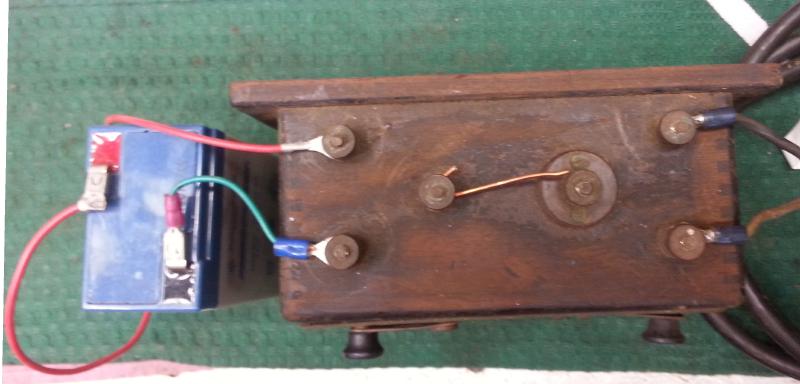

Terminals on the left are POS and NEG or Zinc and Carbon
Left center terminal is G
Right center terminal is S
Right terminals are INT for interrupter or simply put the timer

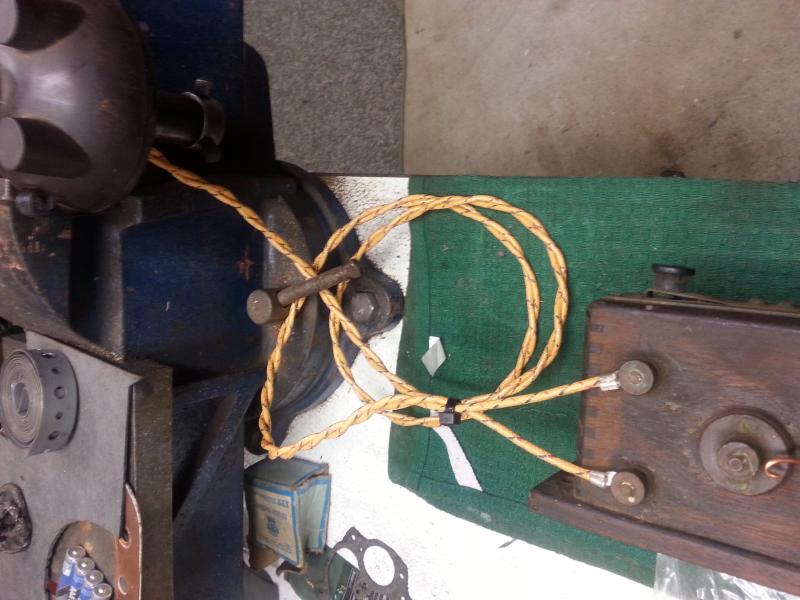

The copper wire from G to almost touching S is my spark gap. DO NOT test any coil without somewhere for the spark to go.

Plus to Minus or Zinc to Carbon with the switch on and the start button pressed .4 ohms. You should get the same result with the 2 INT terminals shorted or jumpered. This is the primary side of the coil.
From the S terminal to the G terminal is 3.89 K ohms This is the secondary side of the coil.

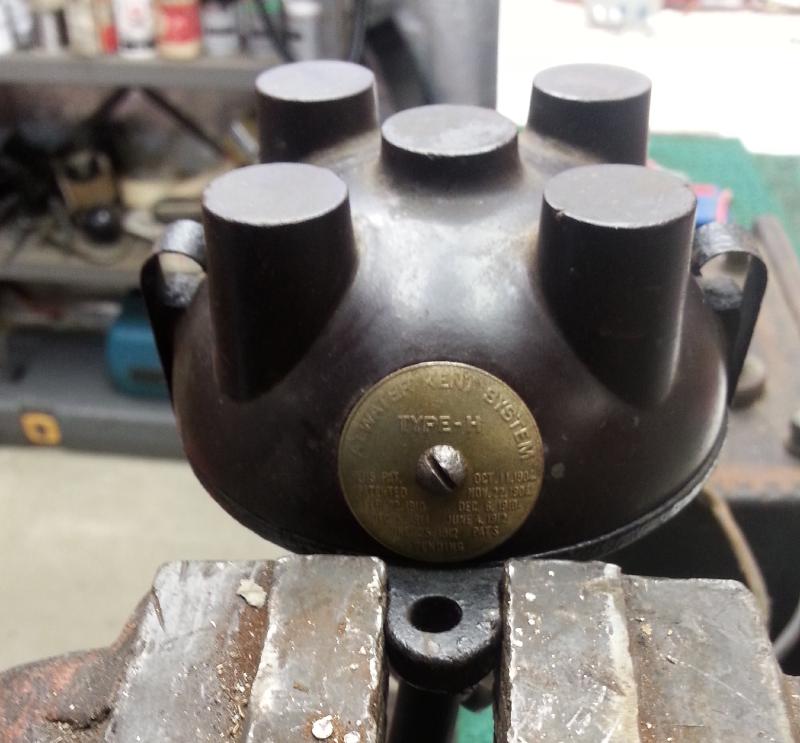

No cylinder distributor cap. Actually just a cover as this is a 1 cylinder timer

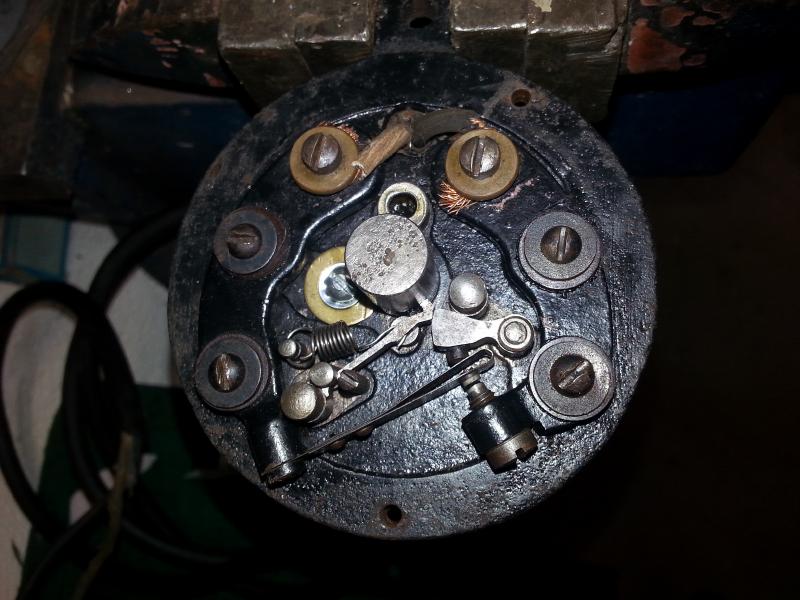

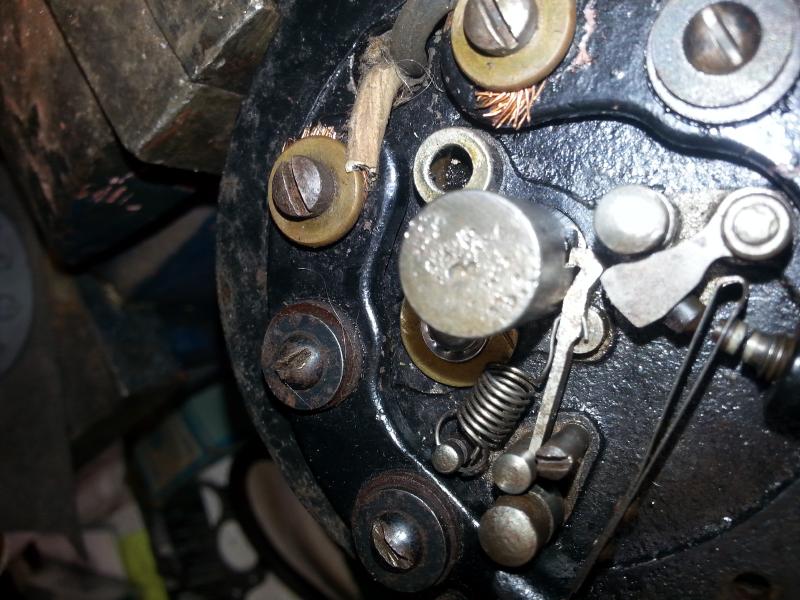

Trip arm between spark/s



Trip arm ready to trip

Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1871
Registered: 01-2002


Posted on Sunday, September 21, 2014 - 12:51 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

More Atwater Kent info
click here
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1872
Registered: 01-2002


Posted on Sunday, September 21, 2014 - 01:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hooked up to 6 volts the amp draw is about 385 ma (milli amps) I had to put the meter in the record mode to get a reading. The action of the Atwater Kent is just too quick to see by eye. My digital scope needs a battery so I can't get an actual waveform and dwell time.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1873
Registered: 01-2002


Posted on Sunday, September 21, 2014 - 05:54 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Searching on the net I found an article Dick Day wrote that was published in Gas Engine Magazine back in 1985.

GEM article
click here

His instructions were to have the wires from the distributor to the coil twisted like old lamp cord. I followed his instructions and it works even better.

Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 950
Registered: 07-2002


Posted on Sunday, September 21, 2014 - 08:07 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie, I've seen several of these systems, never had the opportunity to get serious with one. I've wondered if you could use the distributor to operate a relay, the relay points firing a conventional coil. If you think it might work and have a chance to try it, give me a report. There's an old Indiana Tractor at Portland that we would like to run, has the distributor, no coil.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1874
Registered: 01-2002


Posted on Tuesday, September 23, 2014 - 07:01 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

JB using a Bosch relay I get no action from the relay.
1 maybe not enough current flow as the Bosch relay coil has between 50 and 100 ohms. The AWK coil primary has less than 1 ohm.
2 maybe the AWK timer is just too quick

I am going to try it with a modern coil over plug and see what it does.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1875
Registered: 01-2002


Posted on Tuesday, September 23, 2014 - 07:31 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

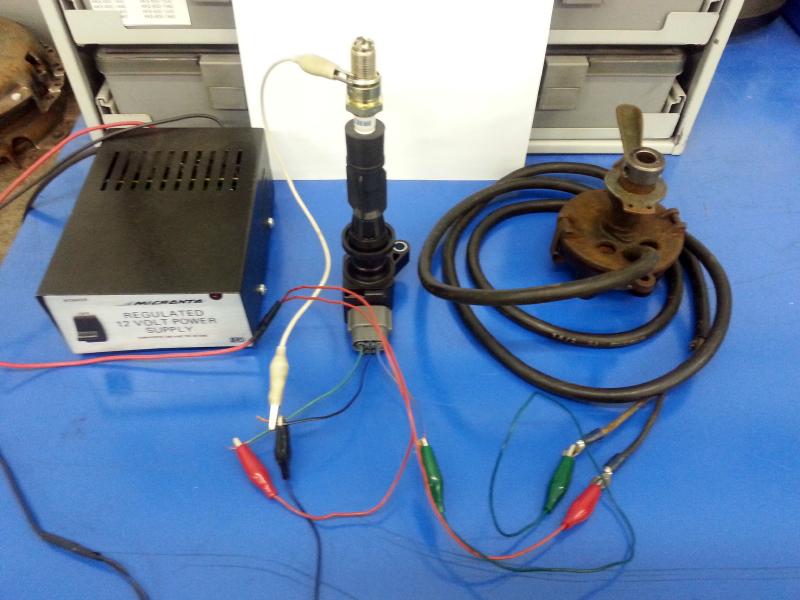

JB it works good hooked directly to a modern coil over plug.
In the pic the coil is from a 2008 Mazda3 2.0L
The connections are plus and minus to the coil. The AWK goes from plus to the coil trigger terminal. The white jumper wire is just a ground from the plug body to minus.
This is a 100KV ignition system so it might not work with an old distributor cap and wires. At the least it will find any and all areas of poor insulation. Maybe just use good solid ignition wire and keep the plug gaps close so the voltage doesn't have a chance to get above 10KV or so.

Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1877
Registered: 01-2002


Posted on Tuesday, September 23, 2014 - 06:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Youtube
Spark gap is almost an inch
click here
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 951
Registered: 07-2002


Posted on Tuesday, September 23, 2014 - 08:43 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The Mazda coil is a good idea Ernie. In use I would build in a relief gap, maybe .060" or so then to ground in case someone tries to run it with a wire off, spark would have a place to go.
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard A. Day Jr.
Senior Member
Username: richardday

Post Number: 1107
Registered: 11-2003


Posted on Thursday, September 25, 2014 - 05:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Seems to me Ernie has solved the long debated argument that twisting the wires together does give a hotter spark and it probably protects the coil from internal break down.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1878
Registered: 01-2002


Posted on Friday, September 26, 2014 - 08:52 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The close time on the AWK points is 2.68 ms measured using a digital scope.

With close time this quick the AWK ignition system had a constant dwell time no matter what the RPM.

On old slow turning engines that were running less than 2,000 RPM giving a distributor speed of less than 1,000 RPM.

This was most likely one of the design factors that made this system work so well.

Top of pagePrevious messageNext messageBottom of page Link to this message

miro forest
Senior Member
Username: miro

Post Number: 782
Registered: 11-2001


Posted on Thursday, December 11, 2014 - 02:15 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

That You Tube video says it all.
And 6V at about 1/3 A, gives about 2 watts of power.
It makes for long battery life too.
miro
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2678
Registered: 01-2002


Posted on Wednesday, April 27, 2022 - 05:31 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

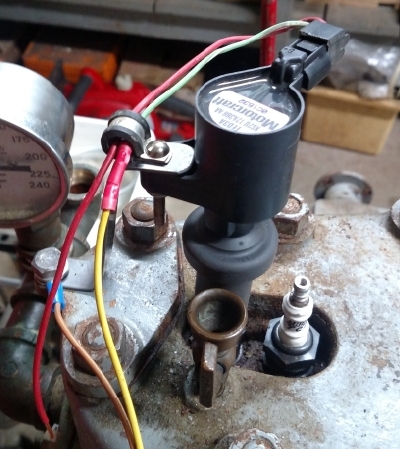

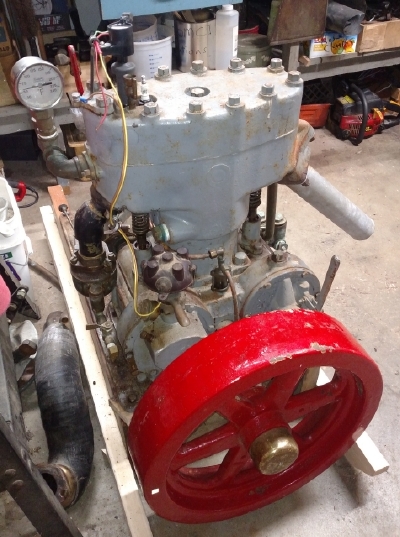

Here is the AWK timer and a Motorcraft coil on plug on a running engine.

Just to make this clear you can't do this with a Cuno style timer or any timer meant for a buzz coil. Smoke will come out of something other than the exhaust.

The AWK timer has a dwell time of around 3 ms. That is milli seconds. A properly working AWK timer even with the engine off the timer points will not ever be 100% on (closed). These coil over plug coils are designed for a dwell time of 3 to 5 ms (3 ms = 0.003 sec) controlled by the engine computer. And the AWK timer is almost exactly that. In this case 2.68 ms.

On a timer meant for a buzz coil the dwell time is huge. In some cases maybe even in the range of 500 ms (1/2 second). It is also possible for the engine to stop with the timer contacts closed, meaning the coil is on or buzzing until someone remembers to shut the switch off.

More info, pics and a YouTube to follow.





Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2679
Registered: 01-2002


Posted on Wednesday, April 27, 2022 - 06:04 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

You tube of first run using jumper wires etc.

https://www.youtube.com/shorts/FZ4FViBGytQ

AWK ignition systems appeared like they didn't have a condenser, they did and it was in the coil. I had to add a condenser to the timer in this application because the coil over/on plug style coil doesn't have an internal condenser.


Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2680
Registered: 01-2002


Posted on Wednesday, April 27, 2022 - 09:40 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

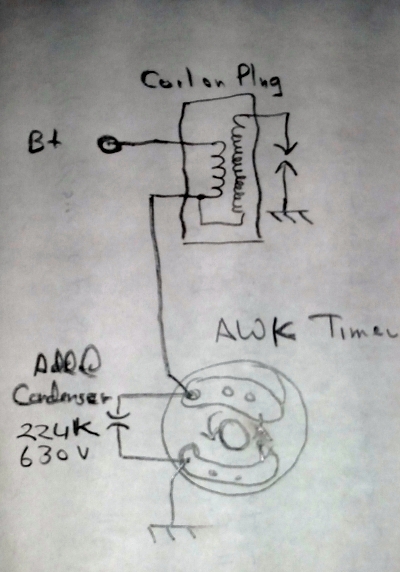

Wiring Diagram

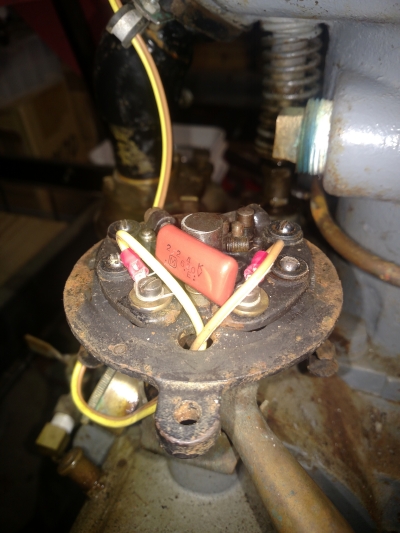

The condenser is NP or non polarized. I get them from Digikey
Yes the voltage is 630.
The back inductive kick (voltage spike when the points open) is most likely over 400 volts

Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2681
Registered: 01-2002


Posted on Wednesday, April 27, 2022 - 09:45 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

More AWK trivia
It has been stated here and other places that you do not file the AWK points as they are tungsten. This engine had been sitting for about 5 years. Previously it was in a boat and being run. I couldn't get any spark when I wired this up. When I looked at the points they were all crusted over with some sort of crusty looking stuff. I just wire wheeled them on my bench grinder. Then they were a dull silver color. I put them back in and now plenty of spark.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2682
Registered: 01-2002


Posted on Wednesday, April 27, 2022 - 10:09 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Here is a youtube of it in a boat about 6 years ago.

In this vid it is running with the real AWK ignition system.

This engine is most likely the last 100% Palmer Marine Engine made by a Palmer employee. Henry the gent that assembled it was one of the last Palmer employees and when it was all over he got what was left. As I understand he assembled this engine from parts he had in his shop in the early 70s. There were IH Palmers made into the late 70s.

https://www.youtube.com/shorts/cUkTJ_T2ZnE
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2683
Registered: 01-2002


Posted on Wednesday, April 27, 2022 - 10:33 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Here it is on YT again as a real vid not a SHORT.

https://www.youtube.com/watch?v=WkmB2m_JExc

So if you are adding vids to YT here is how to keep it from being a SHORT.

A Short is to me one of the most annoying things YT has ever done.

Anyway, do NOT record the video with your phone vertical, or make the video at least 1 second over a minute.

The vid above was done with my phone horizontal.
Top of pagePrevious messageNext messageBottom of page Link to this message

Dick Briggs
Senior Member
Username: dick_briggs

Post Number: 56
Registered: 02-2015
Posted on Saturday, April 30, 2022 - 12:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

HI Ernie. Thanks for all this information; I'm not sure I really understand it all, but I'll keep trying. I have a couple of those coil/spark plugs. Can you tell me what type of ignition/timer, other the the AWK, would work with them since a Cuno (and others like them??) won't work? Thanks, Dick
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2684
Registered: 01-2002


Posted on Saturday, April 30, 2022 - 08:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Dick,
The only timer that will work is an AWK or some solid state replacement that has only a 3 to 5 second ms on time.
Now this being said you say "coil spark plugs" I assume you are not talking about the AWK box. Are they the buzz coil style or just an ignition coil? The Buzz coil style will work with a Cuno style timer. The ignition coil style will work with about any kind of points and condenser. The possible issue is to make sure if the engine quits/stalls that it isn't in a position where the points are closed with the ignition switch on.
Can you post a couple of pics of your coil style plugs?

Hope this helps
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

Dick Briggs
Senior Member
Username: dick_briggs

Post Number: 57
Registered: 02-2015
Posted on Sunday, May 01, 2022 - 07:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

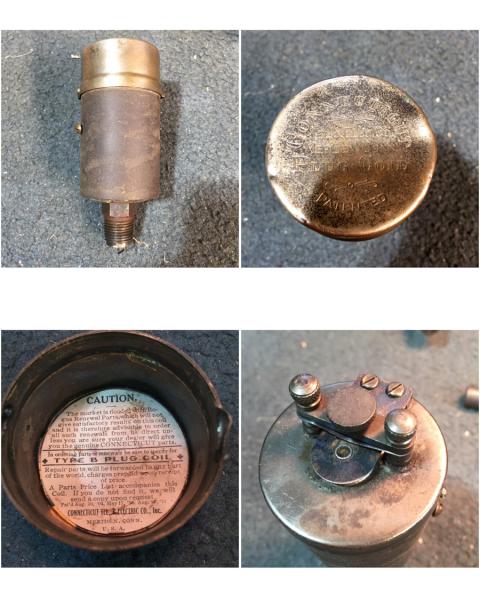

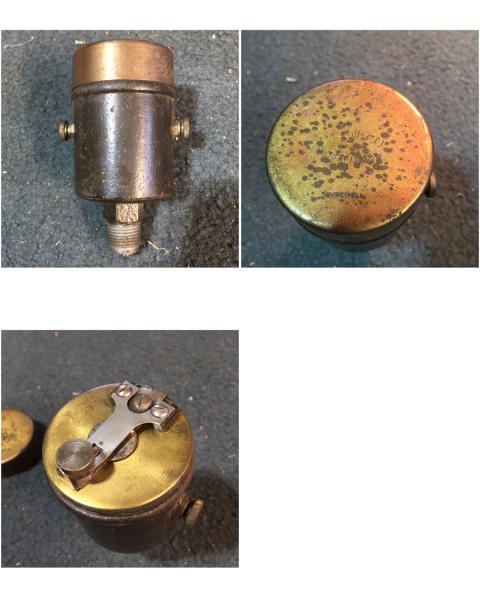

Thanks again Ernie. You are right, I am not referring to the AWK box. I have two "coil on plug" setups. I think they are what you referred to as buzz coil style; when the top is removed, there is the adjustable vibrator. Pictures:

1.
Connecticut Telephone and Electric Company
Meriden, Conn
Plug Coil
Patented



2.
American Coil Co.
Foxboro, Mass

Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2686
Registered: 01-2002


Posted on Tuesday, June 07, 2022 - 09:00 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

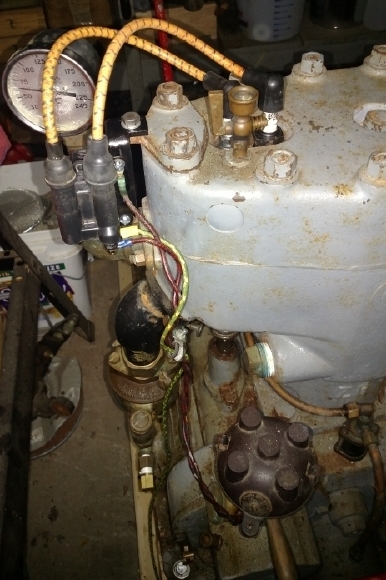

Here is the final version of the Palmer ZR1 ignition system.

I wanted to fire both plugs but with the "coil on plug" coils that I have in stock there wasn't enough room for a coil on each plug. The final result is a double tower coil from a 1990 Mazda Miata with a short wire to each plug.

The possibility of me ever putting this engine in a boat is pretty slim. However if that were to happen the old pattern spark plug wire would have to be replaced with plain black rubber insulated wire without the fabric covering because it is very conductive when wet.

The rubber spark plug boots are from an outboard motor. Not that old but they prevent me from laying my hand on a 100KV potential.

There is a large Fahnestock clip below the AWK timer for B- and and a wire that ends below the carb for B+. Other than water and fuel these are the only connections needed to run the engine.
